PCD Grinding Machine With Double Grinding Wheel for Fine and Rough
Grinding
Product Description:
Our PCD Grinding Machine is designed for grinding PCD and PCBN
materials. It is equipped with a grinding wheel oscillation
distance adjustable between 0-40mm, an optical tube distance of
300mm, a spindle power of 2.2kw, a grinding wheel height adjustment
of 140mm and a grinding wheel traveling range of 170mm. It is the
perfect choice for grinding PCD/PCBN tools and materials. This
machine features high precision and stability, long life time, easy
operation, and low energy consumption. With our PCD Grinder, you
can achieve a high efficiency and quality grinding result.
Features:
- Product Name: PCD Grinding Machine
- Dimension: 1200*1168*1530mm(L*H*W)
- Grinding Wheel Oscillation Distance: 0-40mm(adjustable)
- Pixel Size: 3.75um*3.75um
- Grinding Wheel Inclination: -13°~+24°
- Spindle Power: 2.2kw
- Hard Materials Grinder
- PCD Grinder
- PCD Grinder Machine
Technical Parameters:
| Property | Value |
|---|
| Name | PCD/PCBN Grinding Machine |
| Pixel Size | 3.75um*3.75um |
| Grinding Wheel Traveling Range | 170mm |
| Grinding Wheel Oscillation Frequency | 0-45/min(adjustable) |
| Image System Resolution | 1280dpi*960dpi |
| Readout of Linear Gratings | 0.001mm |
| Grinding Wheel Inclination | -13°~+24° |
| Net Weight | 1450kgs |
| Grinding Pressure | 0-450N(adjustable) |
| Dimension | 1200*1168*1530mm(L*H*W) |
Applications:

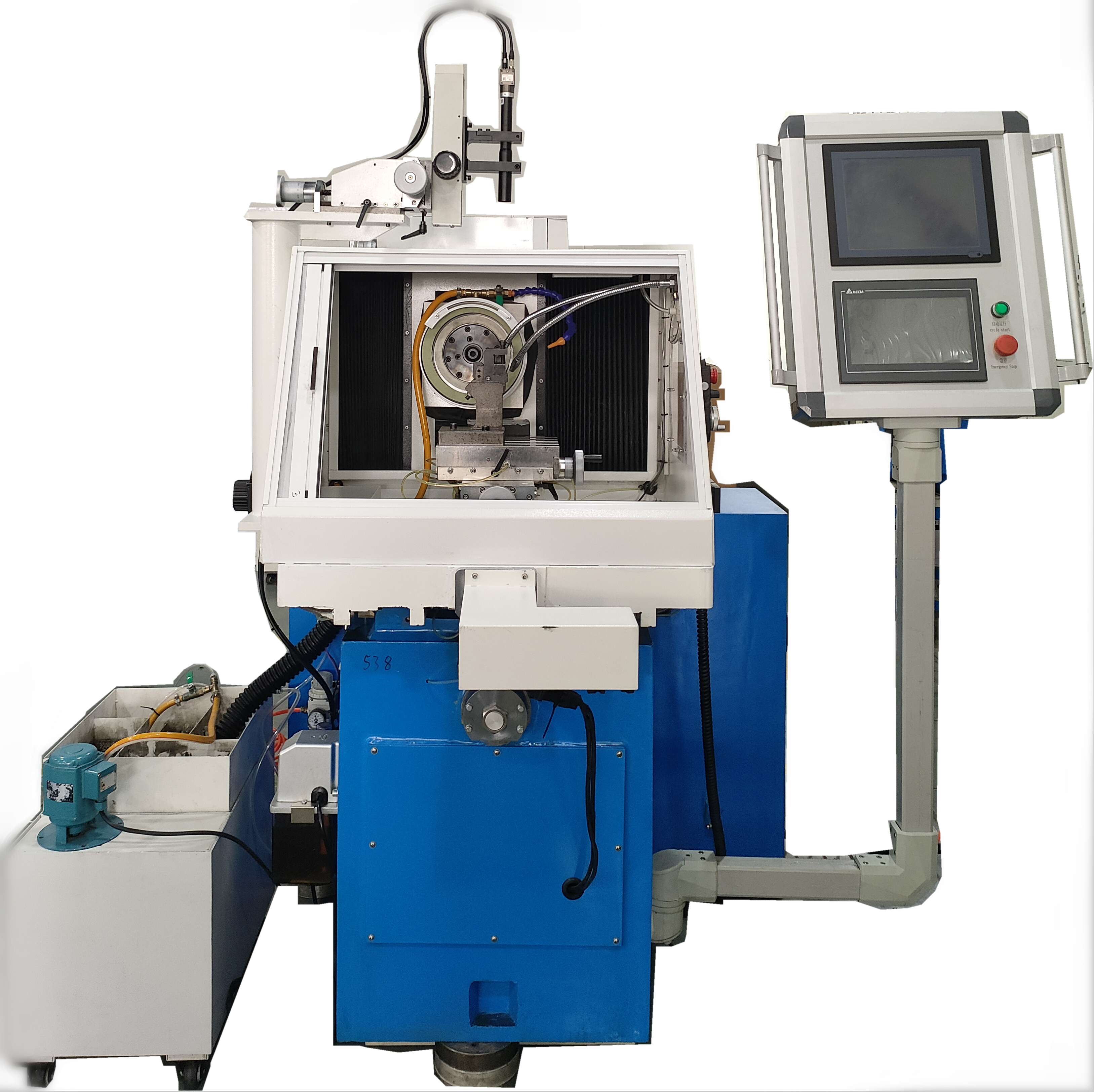

CTSTC ZT-90CNC PCD grinding machine is designed for grinding hard
materials with fast speed, high precision and long service life. It
is widely used in various industries such as aerospace, automotive,
electrical and electronics, medical, and tooling. Its features
include:
- CE certified, meeting the highest quality standards.
- Minimum order quantity of 1.
- Highly efficient grinding wheel with tip radius from 0-70mm.
- Pixel size of 3.75um*3.75um.
- Optical tube distance of 300mm.
- Image system resolution of 1280dpi*960dpi.
- Grinding wheel inclination of -13°~+24°.
- Packaged in plywood box for ultimate protection during transit.
- Delivery time of 45-60 days.
- Various payment terms available, including TT/LC/Western Union.
- Ideal for grinding hard materials with fast speed, high precision
and long service life.
CTSTC ZT-90CNC PCD grinding machine is your ideal choice if you are
looking for a high quality, reliable and efficient hard materials
grinder.
Customization:
Customized Service for PCD Grinding Machine
Brand Name: CTSTC
Model Number: ZT-90CNC
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1
Packaging Details: plywood box
Delivery Time: 45-60 days
Payment Terms: TT/LC/Western Union
Spindle Power: 2.2kw
Grinding Wheel Traveling Range: 170mm
Grinding Wheel Height Adjustment: 140mm
Optical Tube Distance: 300mm
Grinding Wheel Oscillation Frequency: 0-45/min(adjustable)
PCD/PCBN Tools Grinder
Our PCD Grinding Machine is designed for grinding PCD/PCBN tools
and materials. It is with high accuracy and good stability, and is
suitable for mass production. It is an ideal choice for PCD/PCBN
tools production.
Features of PCD/PCBN Materials Grinder
- High accuracy and good stability
- Suitable for mass production
- Spindle power of 2.2kw
- Grinding wheel traveling range of 170mm
- Grinding wheel height adjustment of 140mm
- Optical tube distance of 300mm
- Grinding wheel oscillation frequency of 0-45/min (adjustable)
Support and Services:
PCD Grinding Machine technical support and services include:
- 24-hour online technical support and troubleshooting services.
- On-site installation and commissioning.
- Provide professional training services for operators.
- Provide regular maintenance services.
- Provide spare parts and accessories.
- Provide an after-sales service system.
Packing and Shipping:
Packaging and Shipping for PCD Grinding Machine
PCD Grinding Machine will be packaged in a wooden crate and lined
with foam to ensure that it is fully protected during the shipping
process. The wooden crate will be sealed and labeled with the
product name, model, and serial number. The crate will be placed on
a pallet for easy handling and shipment.
All packaging materials for the PCD Grinding Machine will meet the
requirements of international standards. The shipment will be
tracked and insured for the full value of the product. We will work
with the customer to ensure that the delivery is done on time and
that all packaging and shipping requirements are met.
