CNC Fiber Laser Cutting Machine Laser Turning Machine For PDC
Material
| Technical Specification |
| Laser Source | Specially Customized Fiber Laser Module |
| CNC System | CNC System Based on Windows, X/Y/Z High Precision Removable,
Optical 2 axis |
| Software Control System | Self-developed PLC control system |
| Focus System | Imported High Resolution Laser Sensor |
| Rotation Axis | Servo High Precision Rotation Axis |
| Automatic loading and unloading | High precision 4-axis manipulator |
| Power Supply | 380V-3Phases-5Wires |
| Overall Rated Power | 10KW |
| Laser Source | Fiber |
| Laser Power | 100 W |
| Cooling Method | Water Cooling |
| Table Travel | 200*200*60 mm |
| Runout of rotation axis (A-axis) | Runout tolerance ≤0.005mm |
| Repeat positioning accuracy | ≤0.003 mm |
| Load capacity | 10 kg |
| Rotation Axis(SP-axis) | ≤600 r/m |
| Tray size | 286(￠16) |
| Manipulator Length | 4-axis@400mm (Standard) |
| Remove Efficiency | 0.2 mm@￠16 mm/min |
| Dedusting System | Optional |
| Dimension | 1500(L)*920(W)*1640(H) |

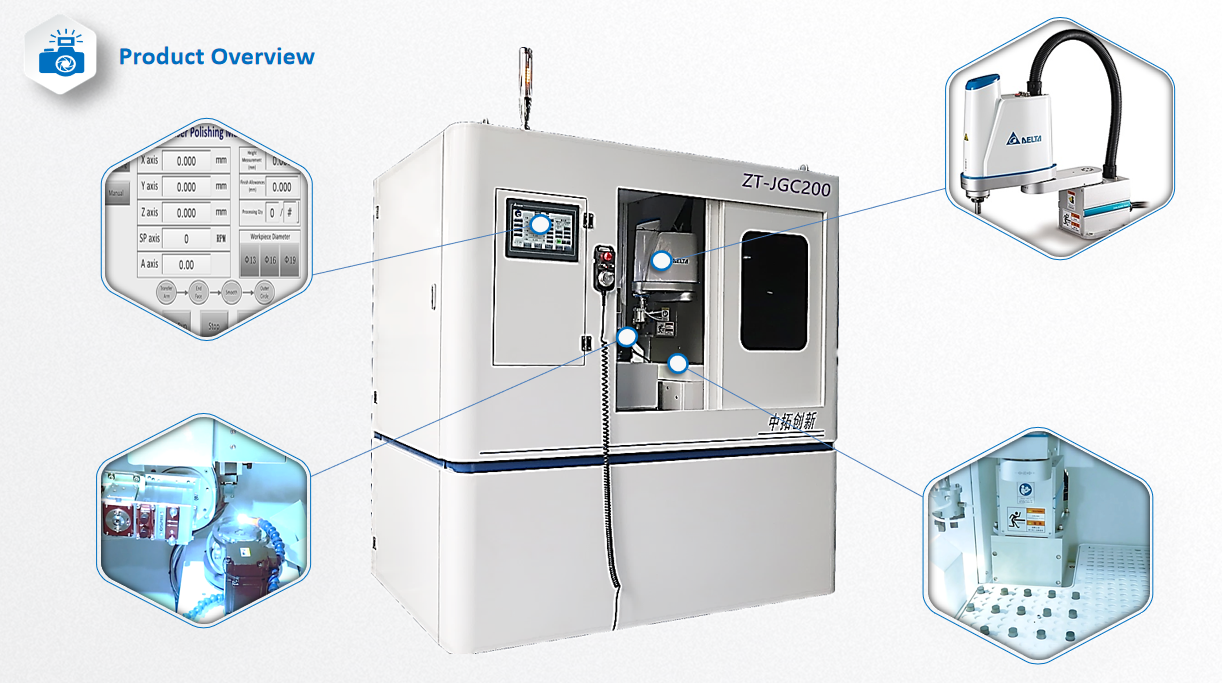

ZT-JGC200 is mainly used for PCD/PDC/CVD rough polishing process
Advanced fiber laser module, more stable, more precise, more
durable, avoid tedious maintenance
Manipulator with a span of 400mm, automatic loading and unloading
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and
service, we have our own R&D
team and production workshop. We can develop our customers' unique
products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and
45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide
one-on-one online video service
according to the needs of customers, and one-on-one service to
solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement
with international big brands,
customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank,
customers can choose goods according
to different needs, we also have self-developed domestic PCD with
high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting
machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of
4-5mm, double-sided cutting maximum
thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
Company Introduction
Originally founded by graduates from Tsinghua University, CHN-TOP
SCI & TECH CO., LTD. is a high-tech enterprise specialized in
diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high
precision processing equipments (PCD/PCBN tools' grinders, vacuum
brazing machines, laser cutting and engraving machines, laser
processing center). We offer pre-machining services (PCD/PCBN laser
cutting, tools brazing, chip breaker engraving, lapping and
polishing, etc. ), and distribute world famous PCD/PCBN blanks.
Also supply professional consultation and advanced technical
services.
We are your only one stop factory in the field of ultra-hard
materials processing with a good reputation in the global market.
