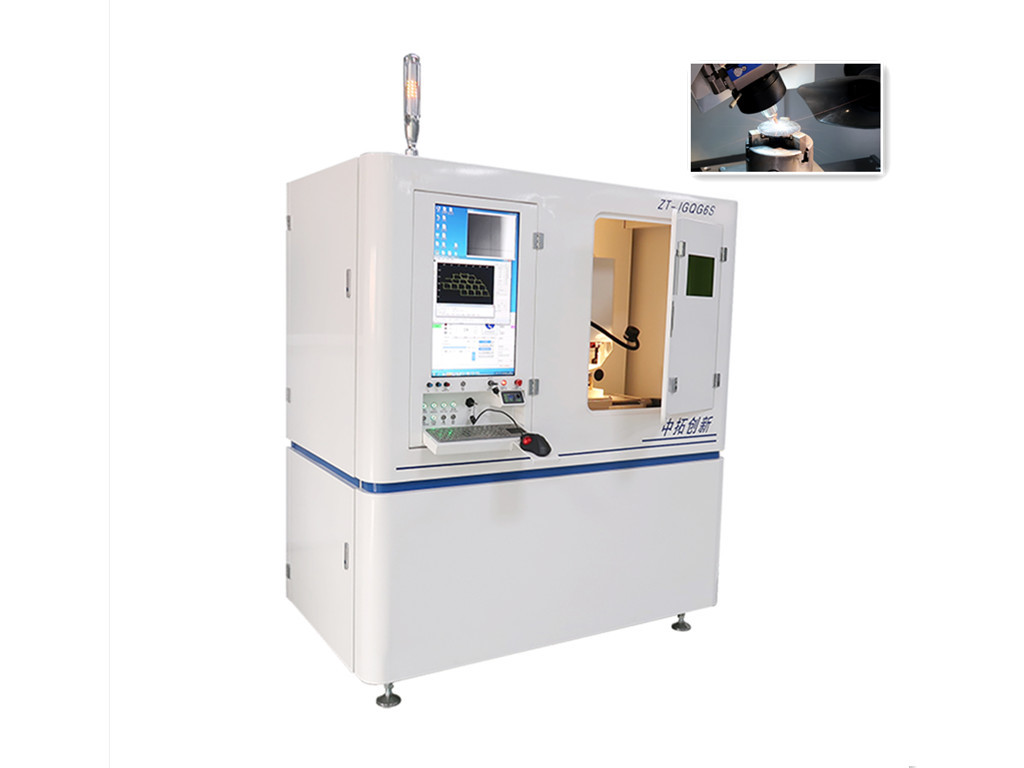

Full Automatic PCD PCBN CNC Fiber Laser Cutting Equipment , Fiber
Laser CNC Machine
Specifications:
| Technology Parameters |
| Laser Source | Fiber |
| Control system | X/Y/Z high precision worktable with rotary A axis |
| Software system | Based on Windows R&D control system |
| Monitor system | CCD same axis monitor |
| Laser head | Special laser head |
| Focus system | High resolution laser sensor |
| Body | Marble Body base |
| Electric Power | 380v-3phase-5wires 50HZ |
| Power | 6KW |
| Laser Power | 3000W |
| Worktable | 220*220*100mm(x*y*z) |
| A Axis rotation angle | ±30°(can cut relief angle) |
| Repeating Position Accuracy | ≦0.005mm(stepping system) |
| ≦0.003mm(servo system) |
| Load | ≦15KG |
| Max speed | 600mm/min |
| Kerf Width | ≦0.10mm |
Quick Details
1. Adopt advanced fiber laser source modular
2. Very competitive price
3. Cutting width is :0.05-0.06mm
4. Special optical laser head, Stable laser source
5. Working 7*24 hours
6. Be able to cut any 2D drawing,
7. ZTCNC software support auto and manual operation
8.Adopt a CCD monitor with HD camera
9. Add rotary axis, can cutting products with some relief angle
Description:
Based on marketing and customized requirements, the economic fiber
laser cutting machine launched. It replace by expensive fiber laser
and past YAG laser. And widely used for PCD/ PCBN/ CVD/ Sapphire/
PDC/ND/MD/ Carbide/ Ceramic material high precision cutting.
Applications:
This machine is mainly suitable for cutting ultra-hard
materials(PCD/ PCBN/ hard alloy),also applicable to materials that
cannot be processed by wire cutting.
Company Introduction:
Originally founded by graduates from Tsinghua University, CHN-TOP
SCI & TECH CO., LTD. is a high-tech enterprise specialized in
diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high
precision processing equipments (PCD/PCBN tools' grinders, vacuum
brazing machines, laser cutting and engraving machines, laser
processing center). We offer pre-machining services (PCD/PCBN laser
cutting, tools brazing, chip breaker engraving, lapping and
polishing, etc. ), and distribute world famous PCD/PCBN blanks.
Also supply professional consultation and advanced technical
services.
We are your only one stop factory in the field of ultra-hard
materials processing with a good reputation in the global market.
