Ultra-Hard Material Automatic PCD Grinding Machine Effectively
Grinder
PRODUCT APPLICATION
ZT-180 is a high precision PCD & PCBN tools automatic grinder,
especially for indexable inserts and milling cutters.
MAIN FEATURES
1, All cast machine bed and cast accessories are average 18 months
natural ageing;
2, SCHNEEBERGER heavy duty and precision linear slide guide for its
accuracy and life;
3, 5-Axises NC and 2 linked machine, high efficiency, accuracy and
stability;
4, Swing mechanism utilizing ball-screw by a servo motor, smoother,
more stable durable;
5, The whole pneumatic system use Japan SMC products, and is
designed and selected by domestic top pneumatic system engineers to
realize rapid advance and retreat and flexible grinding of the
worktable.
6, Linear grating and angle encoder of this model is FAGOR, make
sure the precision indication;
7, Camera with LCD monitor and precision scale for easy set up and
inspection during grinding;
8, Optical system for adjustable from 7-45 magnification even 0.05
radius can be grinded and inspected.
TECHNICAL PARAMETERS
MACHINE PARTS
Name: Grinding Accessories
Brand: FUJITSU
Original: JAPAN
Spindle motor inverter produced by the FUJITSU company of Japan

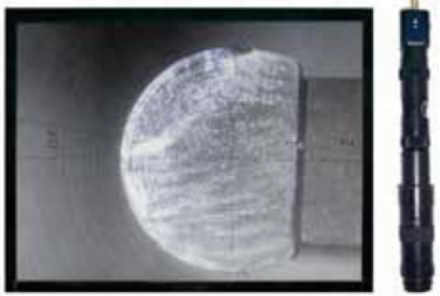

Name: CCD system
Brand: Fuji
Original: Japan
The camera is Fuji ,together with CCD system ,it can do measurement
online
Name: Work table
Brand: CTSTC
Original: China
The work table size is 0-270 degree ,and it can be adjust.
Swivel table angle lock is by a adjustable handle lever.
GRINDING SAMPLES
PACKING:
Bubble film - Carton box - Wooden box
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and
service, we have our own R&D team and production workshop. We
can develop our customers' unique products according to their
needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and
45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide
one-on-one online video service according to the needs of
customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement
with international big brands, customers do not need to worry about
genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank,
customers can choose goods according to different needs, we also
have self-developed domestic PCD with high quality, the price is
very competitive.
Q: How about the cutting thickness and width of Laser cutting
machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of
4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
Company Introduction
Originally founded by graduates from Tsinghua University, CHN-TOP
SCI & TECH CO., LTD. is a high-tech enterprise specialized in
diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high
precision processing equipments (PCD/PCBN tools' grinders, vacuum
brazing machines, laser cutting and engraving machines, laser
processing center). We offer pre-machining services (PCD/PCBN laser
cutting, tools brazing, chip breaker engraving, lapping and
polishing, etc. ), and distribute world famous PCD/PCBN blanks.
Also supply professional consultation and advanced technical
services.
We are your only one stop factory in the field of ultra-hard
materials processing with a good reputation in the global market.
