High Resolution Laser Sensor CNC Fiber Laser Cutting Machine for
PDC
| Technical Specification |
| Laser Source | Specially Customized Fiber Laser Module |
| CNC System | CNC System Based on Windows, X/Y/Z High Precision Removable,
Optical 2 axis |
| Software Control System | Self-developed PLC control system |
| Focus System | Imported High Resolution Laser Sensor |
| Rotation Axis | Servo High Precision Rotation Axis |
| Automatic loading and unloading | High precision 4-axis manipulator |
| Power Supply | 380V-3Phases-5Wires |
| Overall Rated Power | 10KW |
| Laser Source | Fiber |
| Laser Power | 100 W |
| Cooling Method | Water Cooling |
| Table Travel | 200*200*60 mm |
| Runout of rotation axis (A-axis) | Runout tolerance ≤0.005mm |
| Repeat positioning accuracy | ≤0.003 mm |
| Load capacity | 10 kg |
| Rotation Axis(SP-axis) | ≤600 r/m |
| Tray size | 286(￠16) |
| Manipulator Length | 4-axis@400mm (Standard) |
| Remove Efficiency | 0.2 mm@￠16 mm/min |
| Dedusting System | Optional |
| Dimension | 1500(L)*920(W)*1640(H) |

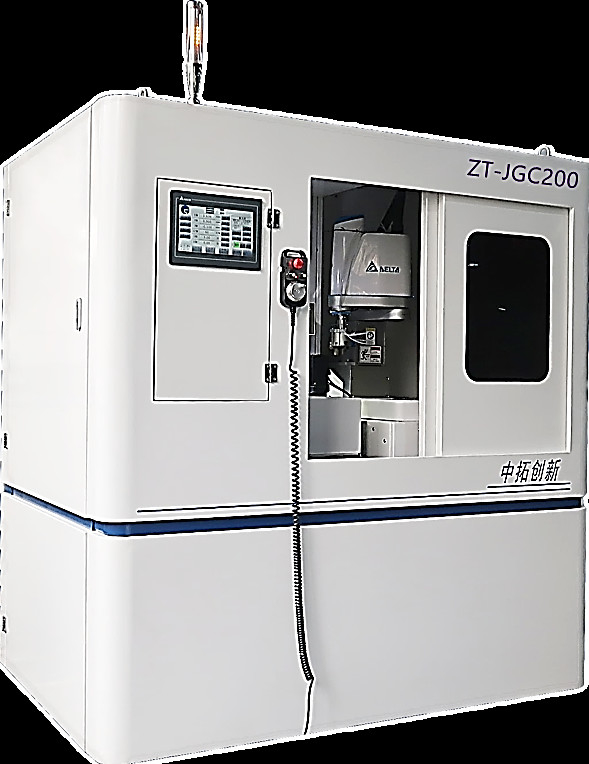

ZT-JGC200 is mainly used for PCD/PDC/CVD rough polishing process
