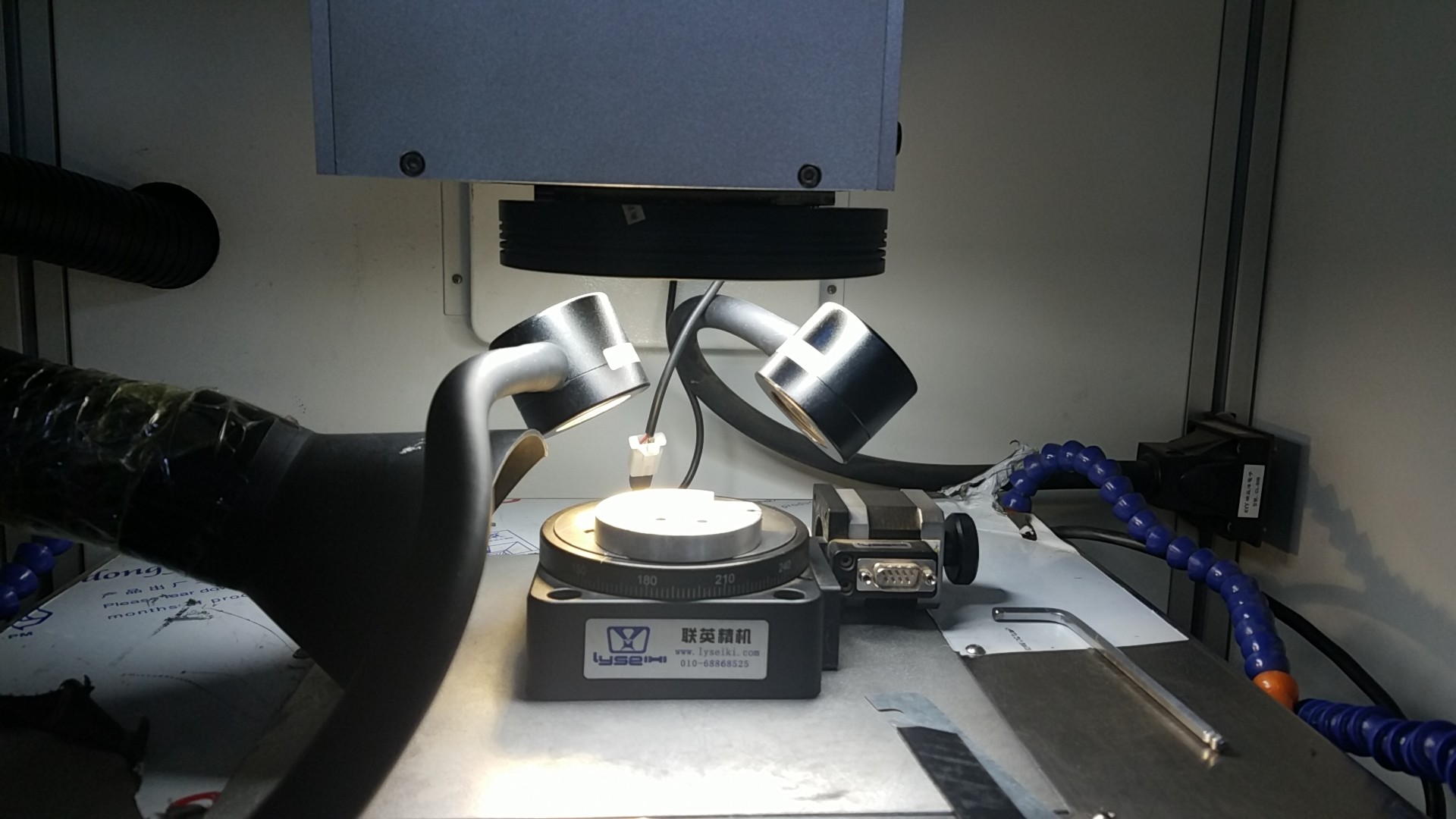

ZT-JGDK200 PDC Automatic Laser Engraving Machine, Visual Recognition

ZT-JGDK200 laser engraving machine is mainly used for special-shaped diamond surface processing of PDC of petroleum drill head, it can engrave PDC with complex 3D graphics. The machine adopts visual recognition for automatic positioning, the industrial camera is imported from Germany, automatic focusing, closed-loop control for all motions.

Design Features:

• CCD visual positioning, automatic focusing, the processing shapes can be arbitrary 3D graphics, and the processing status can be viewed.

• Standard 3D software input, combined parameter adjustment, rough and finish machining can be completed by one key.

• Closed-loop high precision work table control system is more precise for positioning.

• Positioning accuracy ≤0.01mm, machining precision ≤0.05mm.

• Multiple work pieces loading, 64 pcs per cycle, one key operation, unattended operation.

• High processing efficiency, removes 0.005mm per layer, the maximum machining depth is 30mm, surface roughness ≤1.2um.

Originally founded by graduates from Tshinghua university, and we was belong to Tshinghua universtity as a R&D . At 2003, CHN-TOP become a independent company which focus on diamond tools(PCD, PCBN,MD,ND,CVD) industries, produce high precision process equipments.(PCD PCBN tools grinders, vacuum brazing machines, laser cutting machines, chip breaker machines);We offer pre-machining services(PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing，etc.), and distribute world famous PCD and PCBN blanks;Also supply professional consultation and advanced technical services, we are your only one stop shop in the field of ultra-hard materials processing with good reputation in global market. Our business scope is :

• CNC and manual grinders for PCD/PCBN milling, reaming, turning and drilling tools ,etc.
• High precision laser cutting machine for PCD/PCBN/Ceramic and some other valuable materials
• Special laser engraving machines for chip breaker and positioned hole
• Automatic vacuum brazing machine and paste, widely used in PCD/PCBN/CVD/Cardbide, etc.
• Offer diamond cutting tools' pre-machining: laser cutting, carbide notching, brazing, chip breaker
• Ultra-hard material machinining: lampping, grinding and polishing, etc.
• Provide high quality PCD/PCBN blanks and distribute world famous brand materials.
