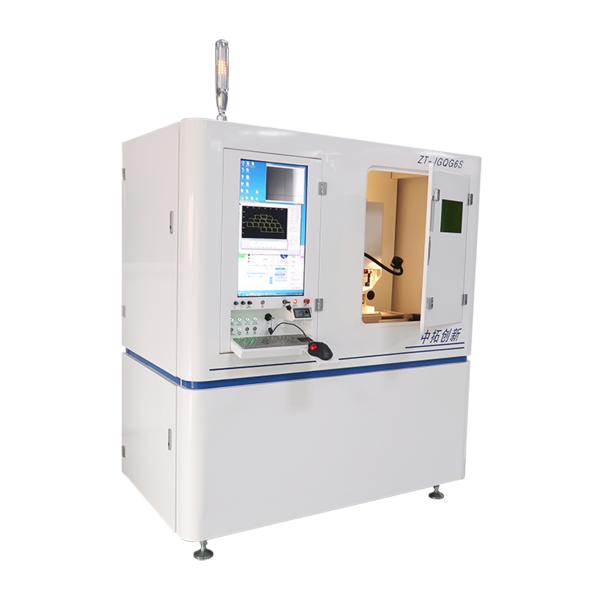

ZT-JGQG6S Fiber Laser Cutting Machine For PCD PCBN CVD Sapphire PDC Carbide Ceramics

ZT-JGQG6S Fiber Laser Cutting Machine For PCD/PCBN/CVD/Sapphire/PDC/Carbide/Ceramics

ZT-JGQG6S is a new model of laser cutting machine. The self-developed laser source makes better cutting performance, completely replaced the traditional YAG cutting machine. Higher cutting speed and thinner cutting kerf (2.0mm thickness PCD, the cutting kerf is 0.06-0.08mm), smooth cutting surface, running steady and maintenance-free. Suitable for cutting PCD/ PCBN/ CVD/ Sapphire/ PDC/ Cemented Carbide/Ceramics and other precious and ultra-hard materials. Especially, it has incomparable advantages in cutting low content PCBN.

ZT-JGQG6S Fiber Laser Cutting Machine For PCD PCBN CVD Sapphire PDC Carbide Ceramics

Technical Parameters:

Power supply requirements	380V50Hz, Five-core four-square power cord
Working environment	Room temperature 20~40℃, humidity ≦60%, away from oil source
Cooling Mode of Machine	Adopt dual temperature cooling system , laser cutting head cooled by room temperature water. Laser cooled by 22℃cooling circulating water, and for manufacturing workpiece cooled by purify oil-free compressed air.
Laser Source	Fiber laser
Duty Ratio	1~100%
Frequency	1-2000 Hz
Power percentage	1%~100%
Four Axis stroke	30030050mm A-Axis 0±30°
Maximun power output	3000W
Positioning accuracy	≦± 0.005mm
Repeat positioning accuracy	≦± 0.005mm

Daily maintenance and maintenance

1. Check the operation of the laser carefully before turn on daily, check the equipment button indicator lamp, stop the ammonium button key switch is not normal.

2. check the circulating water level of water cooler water tank, if not added in time.

3. Check protective lens for damage before daily cutting.

4. Clean up the dust and debris inside the worktable after each shift is completed.

5. After one year of using , the machine tool and worktable should be adjusted regularly to ensure the cutting accuracy of the machine tool.

If the equipment is not in use for a long time, please apply butter to the moving parts and rust-prone parts of the machine tool to prevent rust.
