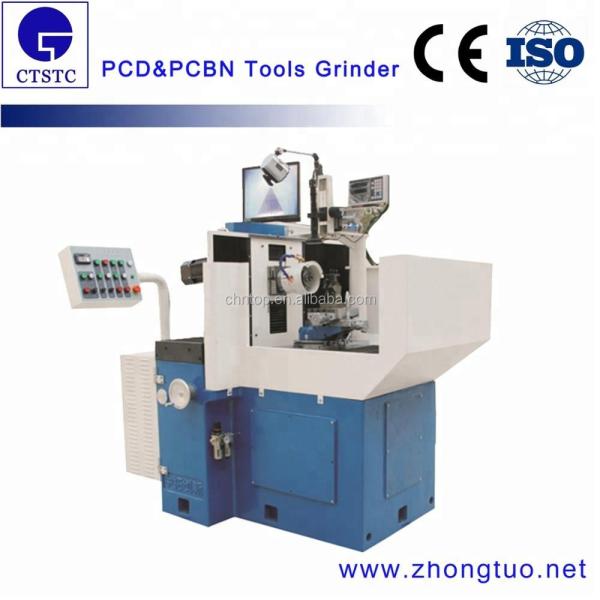

PCD GRINDING MACHINE WITH FAGOR ANGLE ENCODER PRECISION SCALE FOR
RATAORY TOOLS AND ROUND TOOLS
The ZT-120 is a PCD Grinding machine is the competitive price with
stable good quality for rotary Tools and round tools
1. FAGOR ANGLE ENCODER
2. CCD camera is Japan HD camera
3. Linear grating is FAGOR
4. Linear is SCHNEEBERGER
Features
- Machine body and all casts is more than 18 months natural ageing
- SCHNEEBERGER heavy duty &precision linear slide guide for its
accuracy and life
- Worktable pivots up to 270 degrees with adjustable positioning
stops and quickly locks
- The whole pneumatic system use JAPAN SMC brand, to get rapid feed
and infeed
- Linear grating and angle encoder of this model is FAGOR, make sure
the precision indication.
- C.C.D Camera with LCD monitor and precision scale for easy set
up& inspection during grinding.
- LCD monitor scope with zoom system for adjustable from 7- 45
magnification even 0.05 radius can be grinding and inspection.
TECHNICAL PARAMETERS
1. Spindle and Grinding Wheel
| Diameter of Grinding wheel | 6A2 150*40*40 |
| Spindle Power | 2.2KW |
| Spindle Speed | 0-4200RPM adjustable |
| Grinding wheel Inclination | -13°-+24° |
| Grinding Pressure | 0-450N adjustable |
2. Grind Wheel Oscillation( X axis)
| Grinding wheel Height Adjustment | 140mm |
| Grinding wheel Oscillation Frequency | 0-45/min adjustable |
| Grinding wheel Oscillation Distance | 0-70mm adjustable |
| Grinding wheel Oscillation Travel Range | 400mm
|
3. CCD Monitor System
| Max manification times | 70 times |
| CCD measuring system | Online system |
| Monitor | 17 inch monitor |
3. CCD Monitor System
| Max manification times | 70 times |
| CCD measuring system | Online system |
| Monitor | 17 inch monitor
|
Model | ZT-120 |
|---|
| Tip Radius | 0-100mm |
| Grinding Pressure | 0-450N adjustable |
| Spindle Speed | 0-4200RPM adjustable |
| Grinding wheel size | 150*40*40mm (D*H*T) |
| Grinding wheel oscillation frequency | 0-45/min adjustable |
| Grinding wheel oscillation distance | 0-70mm adjustable |
| Grinding wheel height adjustment | 140mm |
| Grinding wheel stroke range | 400mm |
| Grinding wheel inclination | -13°-+24° |
| Cross table swiveling angle | 0-270° |
| Size of cross table | 210*160mm with 4 T slots |
| Workable infeed hand wheel division | 0.001mm/ 1 division |
| Spindle Power | 2.2KW |
| Dimension | 1850*2200*1650mm( L*H*W) |
Grinding Samples
Optional Accessories
Factory View
CHN-TOP is the company offer comprehensive solutions for diamond
tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser
cutting machine,
chip breaker machines, laser engraving machine and polishing
machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six,
Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN
tools,
Notching service for tools, chip breaker machining service and
grinding service
