5 AXIS CNC GRINDING MACHINE PRECISION LINEAR SLIDE CNC CONTROL SYSTEM PCD GRINDING MACHINE FOR TOTARY HOLDER

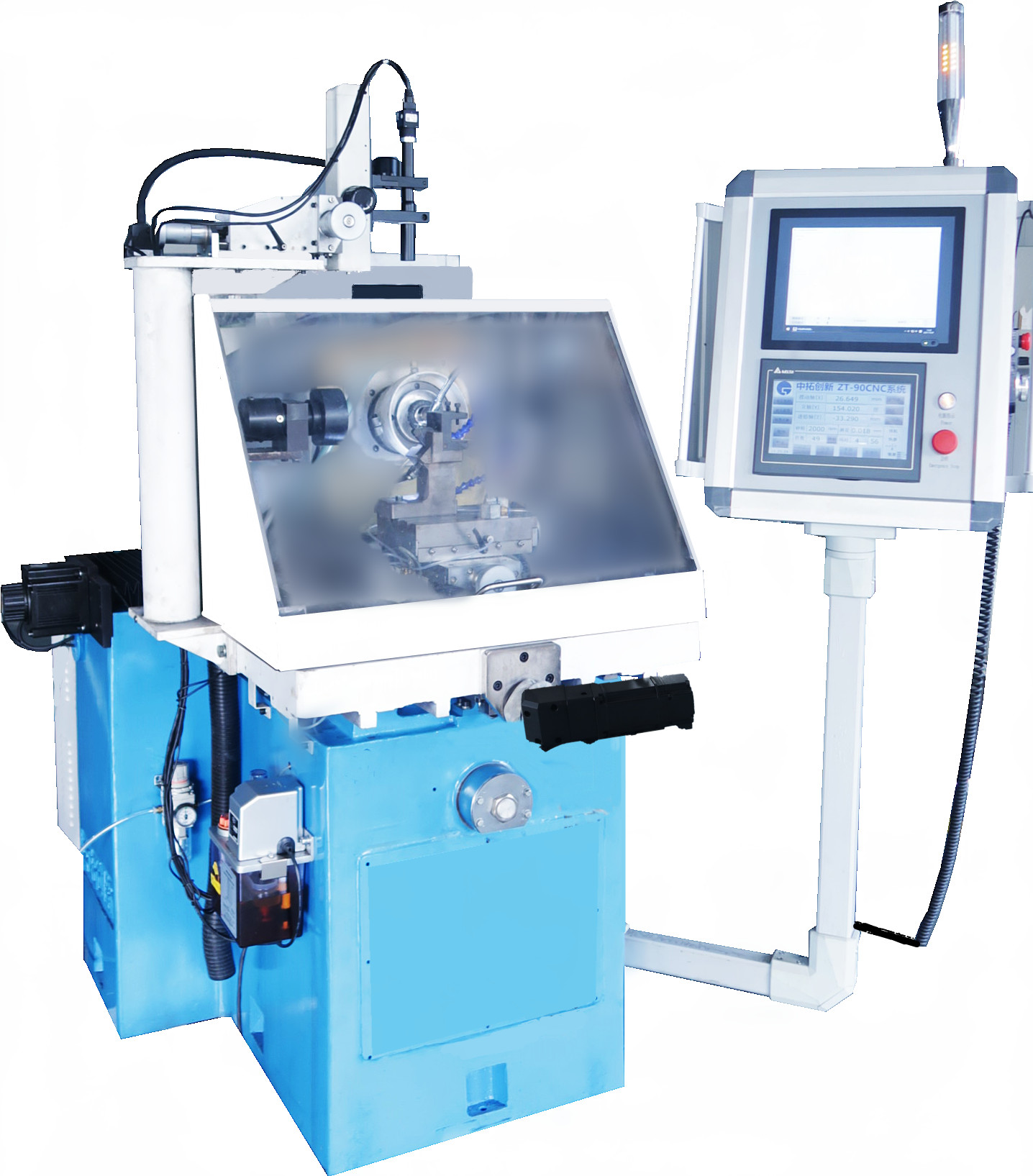

ZT-90CNC Grinding machine is a 5 axis CNC machine which is very economic model

1. Self R&D software to make sure the flexbility of the grinding process

2. It have the software storage programm

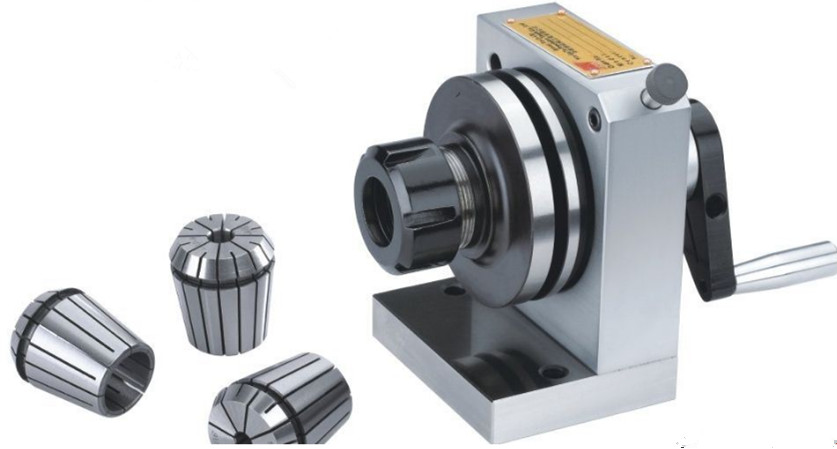

3. The rotary holder can opitional

4. JAPAN YASKAWA reducer

5. Easy operation

Design Features

• Extremely rigid construction with heavy duty cast iron body, more than 18 months natural ageing, stable and durable.
• The spindle can realizes lifting and angle adjustment, which embodies the perfect combination of precision, rigidity and dexterity.
• 5 axis CNC, 2 axis linkage, the whole grinding process is fully automatic.
• Using the latest vision technology, realizes on-line detection, automatic grinding, parameter memory, machining error alarm, etc., comprehensively improve the machining efficiency, accuracy, automation, stability.
• Spindle motor adopts brushless motor, stable and reliable.
• The whole pneumatic system use JAPAN SMC brand, to get a rapid feed and infeed and flexibility grinding.
• Equipped with electronic handwheel, can easily adjust the position of each machining axis and achieve manual grinding.
• Equipped with grinding wheel dresser.

TECHNICAL PARAMETERS

1.Spindle and Grinding Wheel

2.Grind Wheel Oscillation( X axis)

3.CCD Monitor System

Grinding Samples

Optional Accessories

Factory View

CHN-TOP is the company offer comprehensive solutions for diamond tools making

Originally founded by graduates from Tshinghua university, and we was belong to Tshinghua universtity as a R&D . At 2003, CHN-TOP become a independent company which focus on diamond tools(PCD, PCBN,MD,ND,CVD) industries, produce high precision process equipments.(PCD PCBN tools grinders, vacuum brazing machines, laser cutting machines, chip breaker machines);We offer pre-machining services(PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing，etc.), and distribute world famous PCD and PCBN blanks;Also supply professional consultation and advanced technical services, we are your only one stop shop in the field of ultra-hard materials processing with good reputation in global market. Our business scope is :

• CNC and manual grinders for PCD/PCBN milling, reaming, turning and drilling tools ,etc.
• High precision laser cutting machine for PCD/PCBN/Ceramic and some other valuable materials
• Special laser engraving machines for chip breaker and positioned hole
• Automatic vacuum brazing machine and paste, widely used in PCD/PCBN/CVD/Cardbide, etc.
• Offer diamond cutting tools' pre-machining: laser cutting, carbide notching, brazing, chip breaker
• Ultra-hard material machinining: lampping, grinding and polishing, etc.
• Provide high quality PCD/PCBN blanks and distribute world famous brand materials.
