ZT-ZKHJ180 VACUUM BRAZING MACHINE
PRODUCT APPLICATION

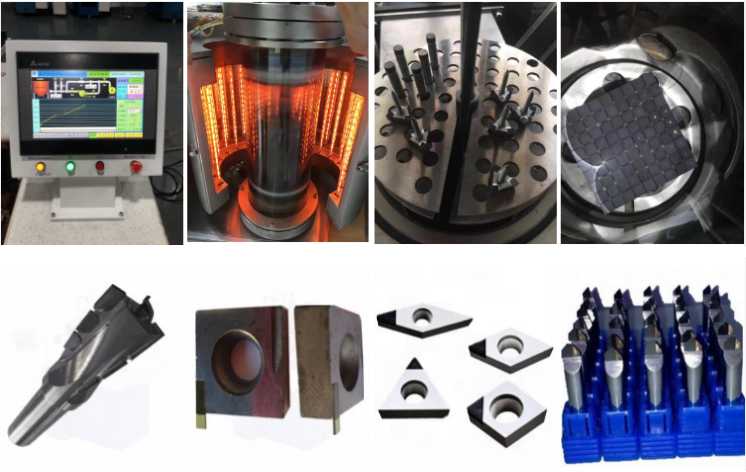

Vacuum Brazing Machine is excellent for brazing ultra-hard
materials (PCD/PCBN/MD/ND/CVD), tungsten carbide, ceramics and
others; it’s fully automatic and very easy to operate at high
efficiency.
MAIN FEATURES
1, PLC control, SCR heating, touch panel, automatic implement after
simple setting with easy temperature control.
2, No oxidation, clean surface, environment-friendly.
3, Brazing quantity is more than 500pcs (for CNGA1204), reduce
total cost.
4, The machine is fully automatic and once loaded, the cycle time
is approximately 70-120 mins.
5, Reduction of distortion even very small tool insert can be
brazed.
6, High brazing strength, 2 times higher than induction welding.
7, Advanced artificial quartz stone for table-board, elegant, high
temperature resistance.
Besides the standard machine, we can offer OEM according to
clients’ requirement.
TECHNICAL PARAMETERS
MATERIALS
Natural diamond, Monocrystal diamond, PCD, PCBN, CVD and Cermet.
SUBSTRATE MATERIAL
Cermet, Tungsten carbide, Steel, Stainless steel, Steel alloy,
Ceramic and etc.

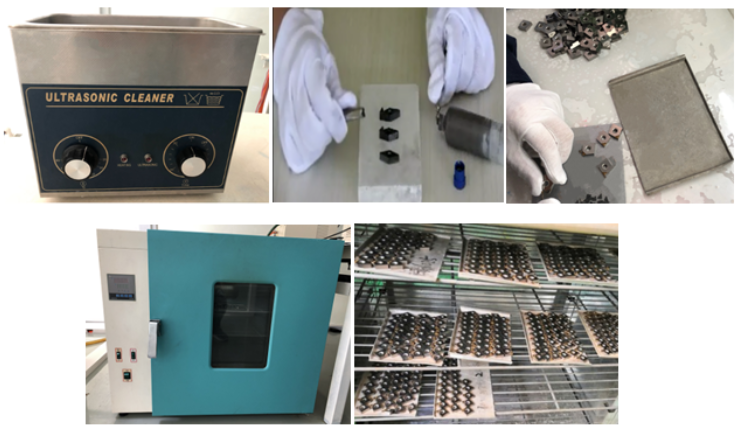

PRODUCING STEPS
1, Washing, put the work piece into the Ultrasonic cleaning machine
for 15-20 minutes;2, Fixing;
3, Drying, adjust the drying oven at 210 degree for 10-15 minutes;
4, Brazing/Welding, put the work piece into the chamber, according
to preset program welding;
5, Finished brazing / welding and below are the ready goods.
PACKING:
Bubble film - Carton box - Wooden box
TRANSPORT MODE
Small products: By Air, included UPS, Fedex, DHL, TNT, SF express and others;
Machines: By Sea
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and
service, we have our own R&D team and production workshop. We
can develop our customers' unique products according to their
needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and
45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide
one-on-one online video service according to the needs of
customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement
with international big brands, customers do not need to worry about
genuine and delivery problems;
2),We can provide a wide range of products with PCD/ PCBN Blank,
customers can choose goods according to different needs, we also
have self-developed domestic PCD with high quality, the price is
very competitive.
Q: How about the cutting thickness and width of Laser cutting
machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of
4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
