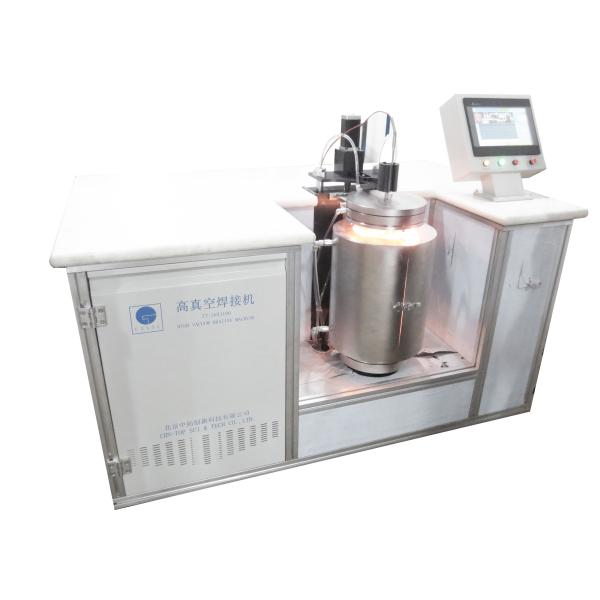

Vacuum brazing machine ZT-ZKHJ 180 for ultra-hard materials PCD&PCBN

Quick Details

1, PLC control, SCR heating, touch panel
2, No oxidation, clean surface, environment-friendly.
3, Brazing quantity is more than 500pcs (for CNGA1204).
4, Fully automatic and once loaded, cycle time: 70-120 min.
5, Reduction of distortion even very small tool insert can be brazed.
6, High brazing strength, 2 times higher than induction welding.
7, Advanced artificial quartz stone for table-board
8. Offer OEM according to clients’ requirement.

Description:

Vacuum Brazing Machine is excellent for brazing ultra-hard materials ( PCD/ PCBN/ MD/ ND/ CVD), tungsten carbide, ceramics and others; it’s fully automatic and very easy to operate at high efficiency.

Specifications:

Applications:

This machine is mainly suitable for nature diamond, mono-crystal diamond, PCD, PCBN, CVD, cermet, tungsten carbide, steel, stainless steel, steel alloy, ceramic.

Originally founded by graduates from Tshinghua university, and we was belong to Tshinghua universtity as a R&D . At 2003, CHN-TOP become a independent company which focus on diamond tools(PCD, PCBN,MD,ND,CVD) industries, produce high precision process equipments.(PCD PCBN tools grinders, vacuum brazing machines, laser cutting machines, chip breaker machines);We offer pre-machining services(PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing，etc.), and distribute world famous PCD and PCBN blanks;Also supply professional consultation and advanced technical services, we are your only one stop shop in the field of ultra-hard materials processing with good reputation in global market. Our business scope is :

• CNC and manual grinders for PCD/PCBN milling, reaming, turning and drilling tools ,etc.
• High precision laser cutting machine for PCD/PCBN/Ceramic and some other valuable materials
• Special laser engraving machines for chip breaker and positioned hole
• Automatic vacuum brazing machine and paste, widely used in PCD/PCBN/CVD/Cardbide, etc.
• Offer diamond cutting tools' pre-machining: laser cutting, carbide notching, brazing, chip breaker
• Ultra-hard material machinining: lampping, grinding and polishing, etc.
• Provide high quality PCD/PCBN blanks and distribute world famous brand materials.
