CE Certification Vacuum Brazing Machine Automatic For PCD Blank Tools

Ask Lasest Price
Brand Name :	CHN-TOP
Model Number :	ZT-ZKHJ180
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, T/T, D/A, MoneyGram
Supply Ability :	50 SETS/MONTH
Delivery Time :	5-60 WORKING DAYS

Add to Cart

Product Details
Company Profile

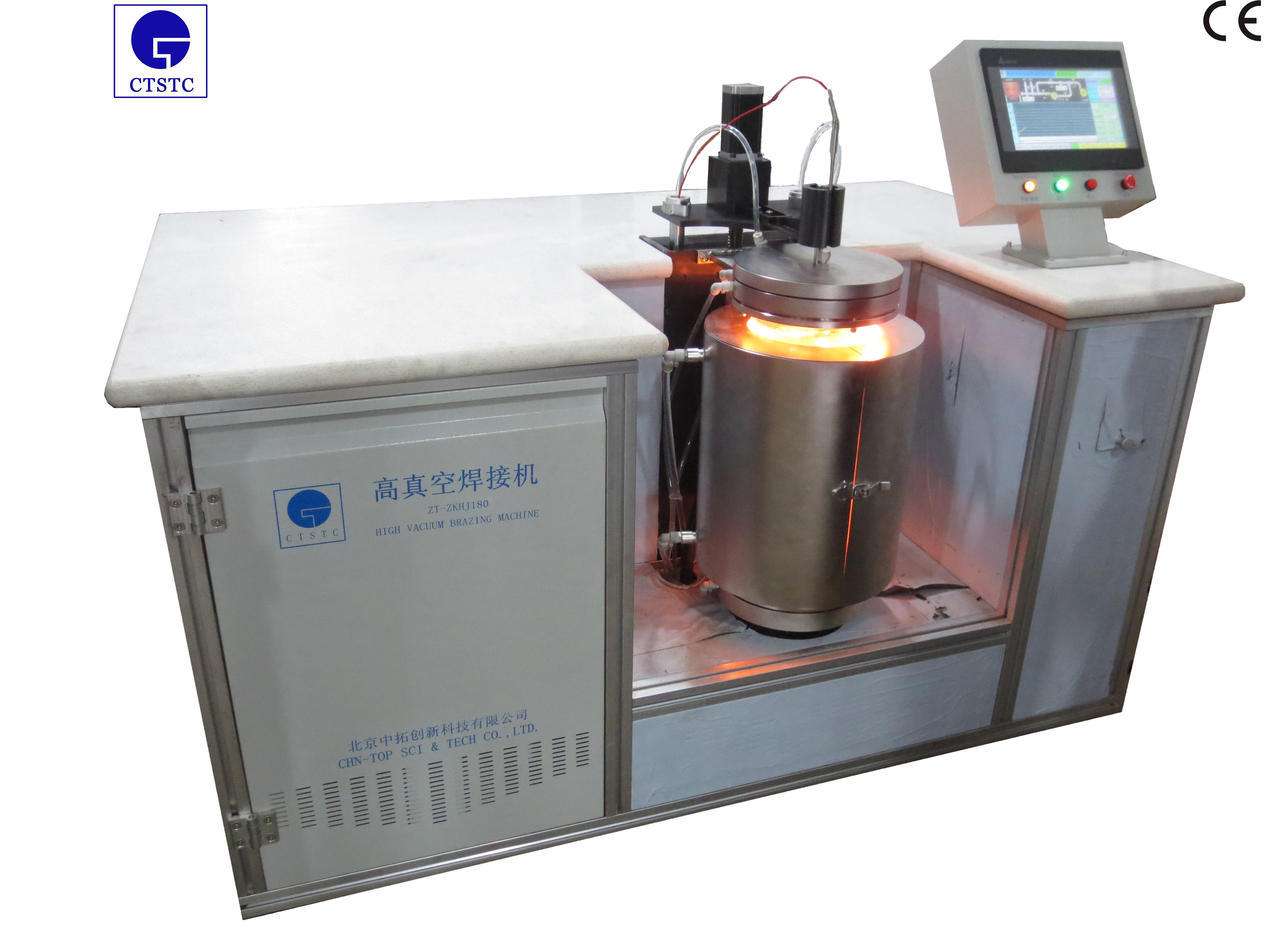

CE Certification Vacuum Brazing Machine Automatic For PCD Blank Tools

PCD BLANK TOOLS EQUIPMENT TOOLS MACHINIING PCD BLANK PCD TOOLS VACUUM BRAZING MACHINE

Vacuum Brazing machine is excellent for brazing ultra-hard material(PCD /PCBN/ MD/ ND /CVD), TUNGSTEN carbide, ceramics and others;

It's fully automatic and very easy to operate at high efficienty

Materials: Natural Diamond, Monocrystal diamond, PCD , PCBN, CVD and cermet
Substrate material:CERMET, tungsten carbide, steel, stainless steel, steel alloy ,ceramic, etc

MAIN FEATURES

1, PLC control, SCR heating, touch panel,
automatic implement after simple setting with easy temperature
control.
2, No oxidation, clean surface, environment-friendly.
3, Brazing quantity is more than 500pcs (for CNGA1204), reduce
total cost.
4, The machine is fully automatic and once loaded, the cycle time
is approximately 70-120 mins.
5, Reduction of distortion even very small tool insert can be
brazed.
6, High brazing strength, 2 times higher than induction welding.
7, Advanced artificial quartz stone for table-board, elegant, high
temperature resistance.
Besides the standard machine, we can offer OEM according to
clients’ requirement.

Technical Parameters:

Dimensions1600*950*900mm( L*W*H)
Power supply3 phases-380V-15KW
ChamberQuartz Glass Tube
Chamber size￠180*500(L)*T4(mm)
Brazing Capability
For example: CNGA1204 approx 350pcs/cycle
Max Temperature950℃
Limiting Vacuum rate10-6 Torr (10-4 Pa)
Vacuum Rate10-5 Torr (10-3 Pa)
Heating source18 pcs halogen tubes
ChillingWater

Brazing Samples

CHN-TOP is the company offer comprehensive solutions for diamond
tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser
cutting machine,
chip breaker machines, laser engraving machine and polishing
machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six,
Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN
tools,
Notching service for tools, chip breaker machining service and
grinding service
