PCD GRINDING MACHINE DIAMOND GRINDING MACHINE FOR CARBIDE TOOLS PCD
TOOLS PCBN TOOLS WITH EFFICIENTY WORK 5 AXISES CNC
ZT-180 is a high precision PCD & PCBN tools automatic grinder,
especially for indexable inserts and milling cutters.
Features
- All machine body and cast accessories is 18 months natural ageing
- SCHNEEBERGER heavy duty &precision linear slide guide for its
accuracy and life
- Swing mechanism utilizing ball-screw by a servo motor, smoother,
more stable durable
- Use advanced technical CNC control system, 5 axis control, two
–axis CNC machining
- The whole pneumatic system use JAPAN SMC brand, to get rapid feed
and infeed
- Linear grating and angle encoder of this model is FAGOR, make sure
the precision indication.
- Camera with LCD monitor and precision scale for easy set up&
inspection during grinding.
- LCD monitor scope with zoom system for adjustable from 7- 45
magnification even 0.05 radius can be grinding and inspection.

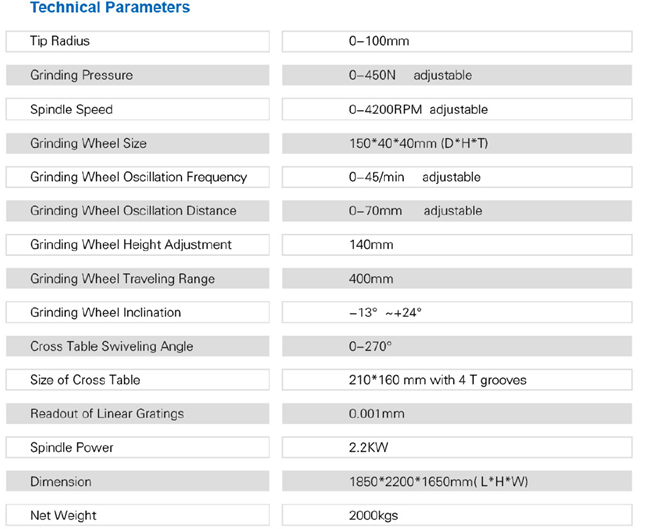

TECHNICAL PARAMETERS
ZT-180 Prameter Specification
Software
Grinding Samples
CHN-TOP is the company offer comprehensive solutions for diamond
tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser
cutting machine,
chip breaker machines, laser engraving machine and polishing
machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six,
Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN
tools,
Notching service for tools, chip breaker machining service and
grinding service
PACKING:
Bubble film - Carton box - Wooden box
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and
service, we have our own R&D team and production workshop. We
can develop our customers' unique products according to their
needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and
45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide
one-on-one online video service according to the needs of
customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement
with international big brands, customers do not need to worry about
genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank,
customers can choose goods according to different needs, we also
have self-developed domestic PCD with high quality, the price is
very competitive.
Q: How about the cutting thickness and width of Laser cutting
machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of
4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
