PCD Cutting Tool Blanks Polycrystalline Diamond for PCD PCBN
diamond tools high quality level with World Class standard
M series
| Model | Grit Size (Um) | Thickness (mm) | Diameter (mm) | Abrasive Resistance | Toughness | Conductivity | Performance | Application |
| ZT005 | 5 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | Low | High | High | Fine grit, precision finishing, easy to WEDM | Alumium alloy, copper alloy, noble metal, circuit board, etc. |
| ZT10M | 10 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | Middle | Middle | Middle | Middle grit,wide range of machining | Low silicon alumium alloy, copper alloy, graphite, plastic,
composite,etc. |
| ZT025M | 25 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | High | Middle | Low | Rough grit, long tools' life | High silicon alumium alloy, graphite,plastic, composite,etc |
| ZT302M | 30/2 | 1.0/1.6/2.0/3.2 | 47.0/55.0 | High | Middle | Low | Excellent wear resistance,edge strength,edge quality and good
thermal stablity | Application areas include high silicon aluminum alloys, hard cast
irons and bi-metal |
CHN-TOP Blanks
Based on the good cooperation with foreign well-known enterprises
and scientific research institutions, after years of digestion,
introduction, absorption of foreign advanced technology and ideas,
we have successfully developed a whole series of polycrystalline
diamond blanks(PCD).
And after a long time of testing and practical application, the
comprehensive performance of the product(Wear resistance, impact
toughness, conductivity, stability, etc.)has approached the
international level.
Name: Polycrystalline Diamond
Brand: CT-S&T
Type:
M series-Machining nonferrous metals and nonmetal
W series-Machining nonmetal, especially for woodworking
Machining Service at CHN-TOP
| Carbide Inserts | Notching, Grinding |
| PCD/PCBN Blank | Laser cutting according to the size |
| Brazing service | PCD PCBN diamond brazing service |
| Grinding | Indexable inserts grinding service |
| |
With more than 20 years of experience in diamond tools materials,
we have a very good relationship with world famous PCD&PCBN
blanks' manufacturers and distribute all brands of PCD&PCBN
Blanks

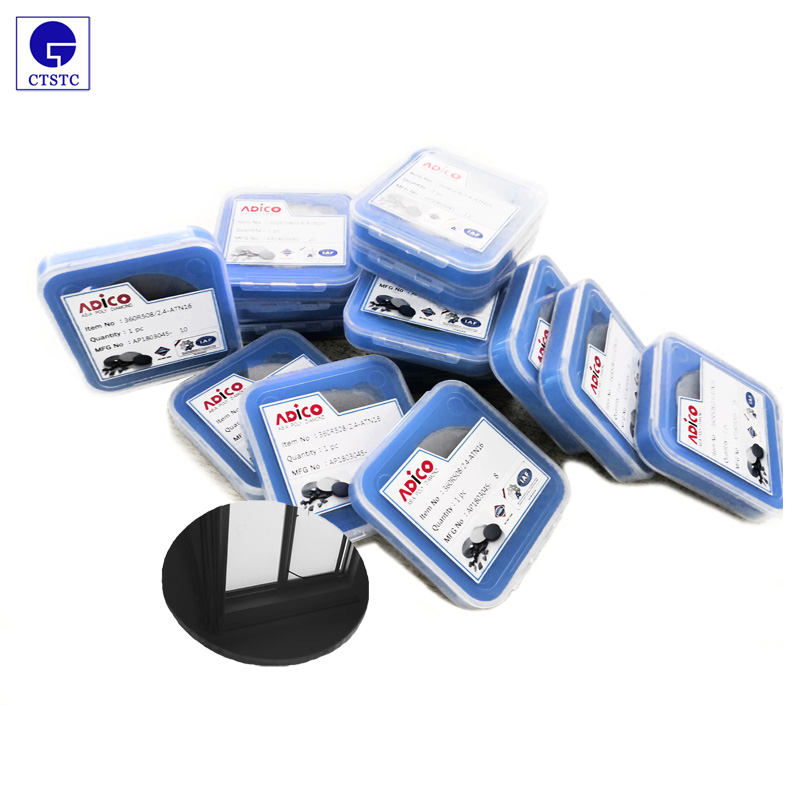

- ILJIN
- Adico
- Hyperion
- Element 6
- TOMEI
CHN-TOP is the company offer comprehensive solutions for diamond
tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser
cutting machine,
chip breaker machines, laser engraving machine and polishing
machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six,
Hypersion, Adico, CHN-TOP
CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN
tools,
Notching service for tools, chip breaker machining service and
grinding service
