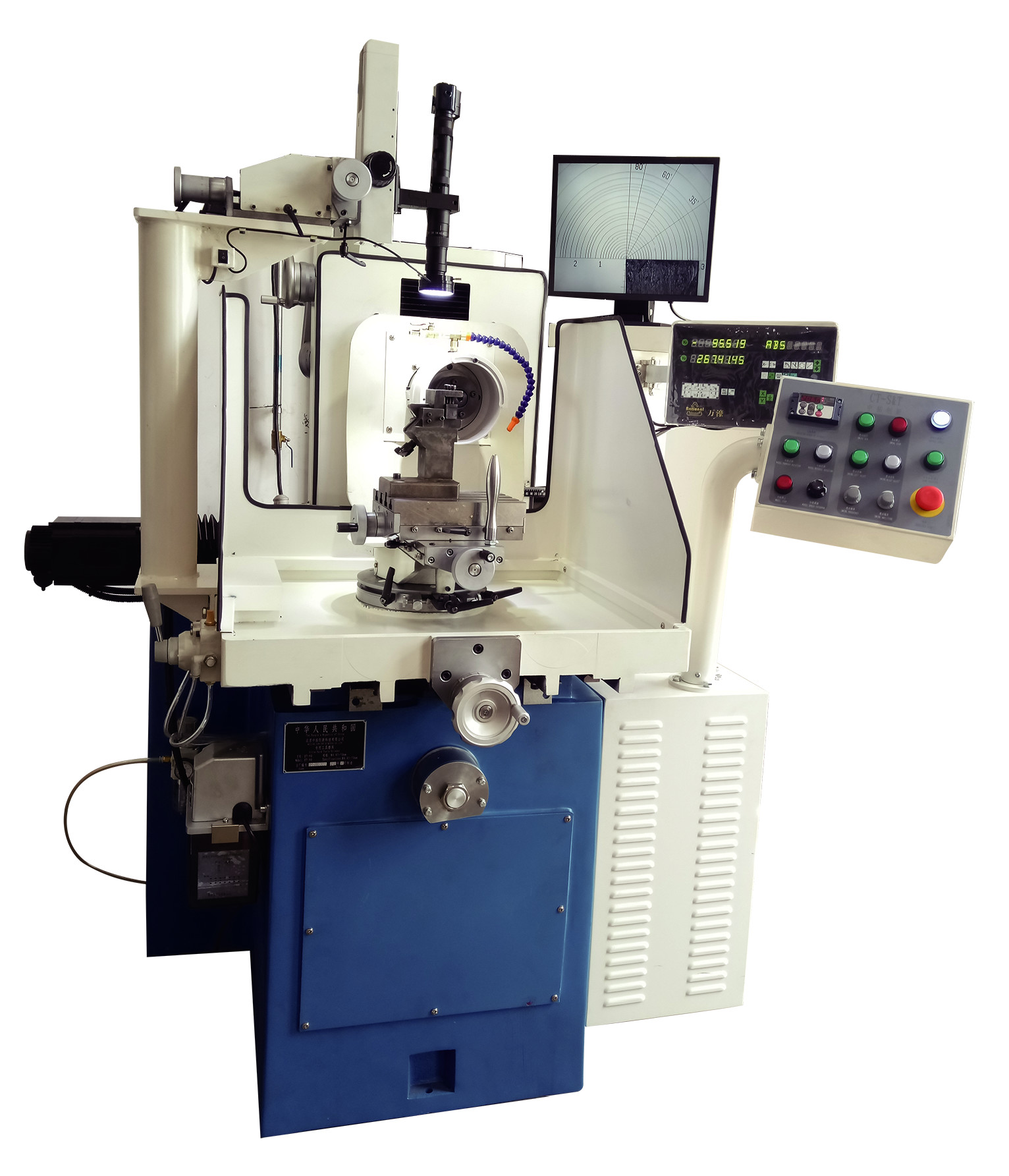

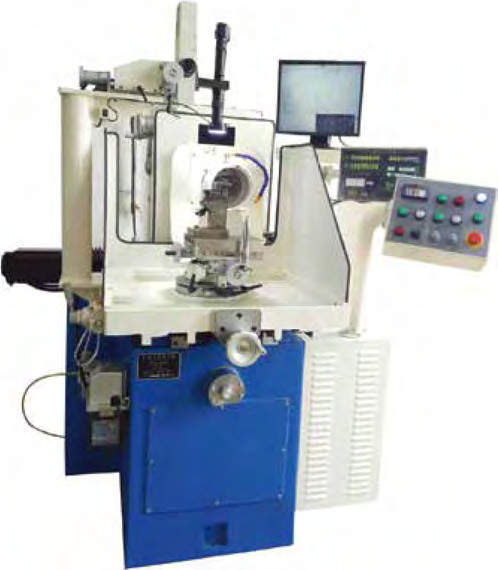

ZT-90 PCD/PCBN Tools' Grinder

ZT-90 is a precision tools'grinding machine which in-cooperate the necessary features required for the economical manufacturing and regrinding of a wide range of PCD, PCBN, carbide and HSS cutting tools.

Design Features:

• Machine body and all casts are more than 18 months natural ageing.

• Spindle motor adopts brush less motor, solid and durable.

• The grinding head realizes the spindle lifting and angle adjustment,

which embodies the perfect combination of precision, rigidity and

dexterity.

• The whole pneumatic system is of JAPAN SMC, to get rapid feed and

outfeed and flexible grinding.

• CCD optical system equipped with LCD, can realize online observation

and monitoring.

• The swing axis provides two options, servo motor drive and mechanical

drive. Servo motor drive can realize the swing amplitude, swing

frequency and swing center position of the grinding head non-stop

adjustment, improve production efficiency.

• Equipped with automatic lubrication pump, complete automatic lubrication

Technical Parameters

Originally founded by graduates from Tshinghua university, and we was belong to Tshinghua universtity as a R&D . At 2003, CHN-TOP become a independent company which focus on diamond tools(PCD, PCBN,MD,ND,CVD) industries, produce high precision process equipments.(PCD PCBN tools grinders, vacuum brazing machines, laser cutting machines, chip breaker machines);We offer pre-machining services(PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing，etc.), and distribute world famous PCD and PCBN blanks;Also supply professional consultation and advanced technical services, we are your only one stop shop in the field of ultra-hard materials processing with good reputation in global market. Our business scope is :

• CNC and manual grinders for PCD/PCBN milling, reaming, turning and drilling tools ,etc.
• High precision laser cutting machine for PCD/PCBN/Ceramic and some other valuable materials
• Special laser engraving machines for chip breaker and positioned hole
• Automatic vacuum brazing machine and paste, widely used in PCD/PCBN/CVD/Cardbide, etc.
• Offer diamond cutting tools' pre-machining: laser cutting, carbide notching, brazing, chip breaker
• Ultra-hard material machinining: lampping, grinding and polishing, etc.
• Provide high quality PCD/PCBN blanks and distribute world famous brand materials.
