Automatic Grinder For PCD/PCBN Tools Grinding Process

CHN-TOP SCI & TECH CO., LTD is a high-tech enterprise founded by young technology graduates of Tsinghua University, long time focus on the ultra-hard tools (such as PCD,PCBN,MD,ND,CVD diamond tool) field,is a machine tool builder that specializes in designing and supplying precision machines (such as Grinding Machine for Ultra-Hard Tools, Vacuum Brazing Machine, Laser Cutting Machine, Indexable Insert Tip Periphery Grinding Machine, Polishing Machine for PCD&PCBN Tools etc.),as a sales agent for the abroad advanced PCD and PCBN, develop the advanced processing technology for the ultra-hard materials, provide the technical consultation and special processing services, as a global integrator to provide the most complete solution for ultra-hard tools, products sell all over the world.

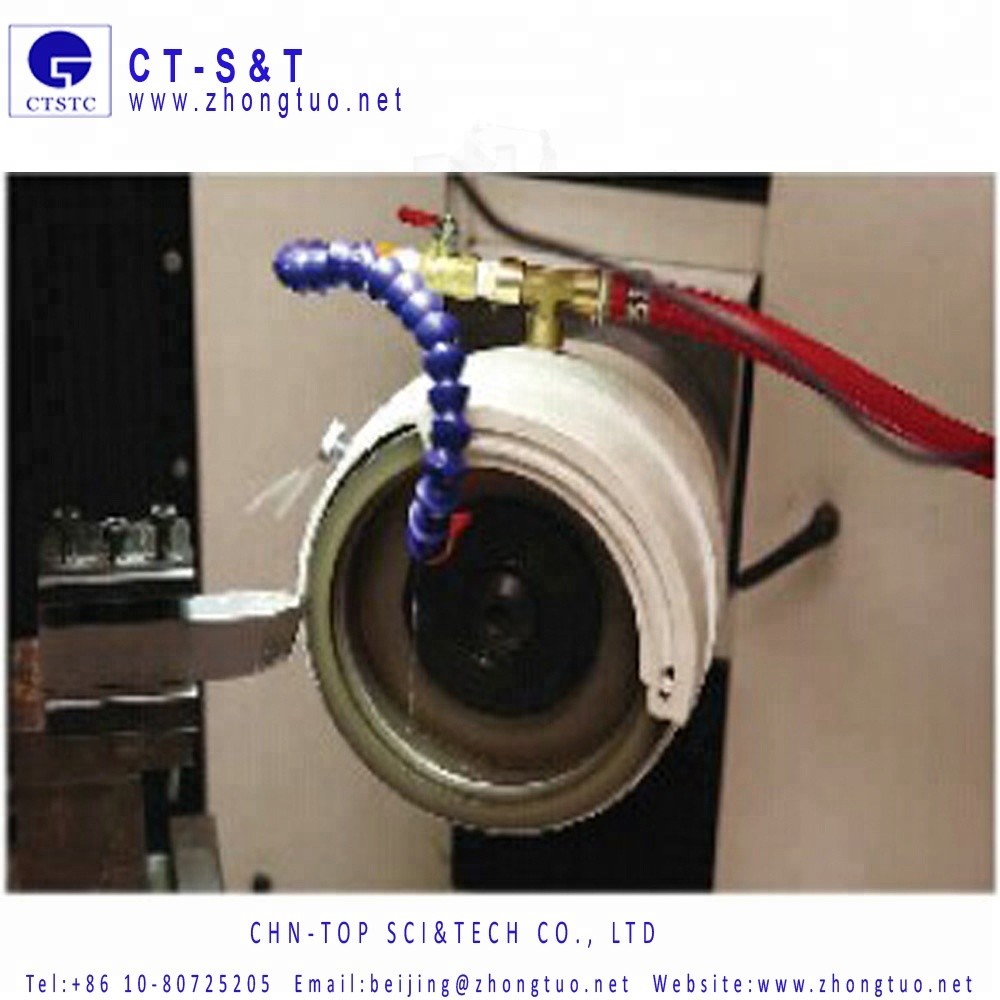

ZT-180 Type CNC Grinder is mainly used for grinding multiple cutters and parts such as artificial diamond, cubic boron nitride and hard alloy etc. The machine tool has sufficient rigidity and precision, which can realize constant pressure grinding and satisfy the grinding of high-precision and high-finish cutters to obtain the good grinding result.

Design Features:

• Extremely rigid construction with heavy duty cast iron body, more than 18 months natural

ageing, stable and durable.

• SCHNEEBERGER heavy duty and precision linear slide guide for its accuracy and long life

• Vertical axis reducer adopts high precision reducer, almost zero clearance.

• 5-axis CNC and 4-axis linkage, the whole grinding process is fully automatic and

closed-loop control

• Linear grating and angle encoder are FAGOR products, ensure measurement accuracy.

• Equipped with high precision and high sens巾vity probe to realize on-line measurement.

• The main servo motor is of Yaskawa servo motor.

• Feed shaft adopts a linear motor, with good rig心ty, high precision and fast reaction.

• Spindle motor is of Taiwan brushless motor, stable and durable. Electric spindle can also be

optional.

• Two sets of grinding wheel dressers, one is responsible for grinding wheel leveling, the other

is responsible for cleaning the surface of grinding wheel on line

• Equipped with electronic handwheel, can easily ad」ust the position of each machining shaft

and achieve manual grinding.

Technical Parameters

Originally founded by graduates from Tshinghua university, and we was belong to Tshinghua universtity as a R&D . At 2003, CHN-TOP become a independent company which focus on diamond tools(PCD, PCBN,MD,ND,CVD) industries, produce high precision process equipments.(PCD PCBN tools grinders, vacuum brazing machines, laser cutting machines, chip breaker machines);We offer pre-machining services(PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing，etc.), and distribute world famous PCD and PCBN blanks;Also supply professional consultation and advanced technical services, we are your only one stop shop in the field of ultra-hard materials processing with good reputation in global market. Our business scope is :

• CNC and manual grinders for PCD/PCBN milling, reaming, turning and drilling tools ,etc.
• High precision laser cutting machine for PCD/PCBN/Ceramic and some other valuable materials
• Special laser engraving machines for chip breaker and positioned hole
• Automatic vacuum brazing machine and paste, widely used in PCD/PCBN/CVD/Cardbide, etc.
• Offer diamond cutting tools' pre-machining: laser cutting, carbide notching, brazing, chip breaker
• Ultra-hard material machinining: lampping, grinding and polishing, etc.
• Provide high quality PCD/PCBN blanks and distribute world famous brand materials.
