Metal Fiber Laser Cutting Machine Automatic PCD/PCBN Cutter
Originally founded by graduates from Tsinghua University, CHN-TOP
SCI & TECH CO., LTD. is a high-tech enterprise specialized in
diamond tools (PCD, PCBN, MD, ND, CVD) industries, producing high
precision processing equipments (PCD/PCBN tools'grinders, vacuum
brazing machines, laser
cutting and engraving machines, laser processing center). We offer
pre-machining services (PCD/PCBN laser cutting, tools brazing, chip
breaker engraving, lapping and polishing, etc. ), and distribute
world famous PCD/PCBN blanks. Also supply professional consultation
and advanced technical services. We are your only one stop factory
in the field of ultra-hard materials processing with a good
reputation in the global market.

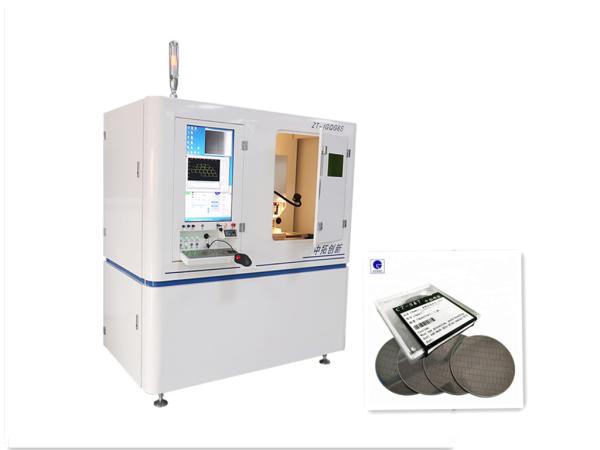

ZT-JGQG6S is a new model of laser cutting machine. The
self-developed laser source makes better cutting performance,
completely replaced the traditional YAG cutting machine. Higher
cutting speed and thinner cutting kerf (2.0mm thickness PCD, the
cutting kerf is 0.06-0.08mm), smooth cutting surface, running
steady and maintenance-free. Suitable for cutting
PCD/PCBN/CVD/Sapphire/ PDC/Cemented Carbide/Ceramics and other
precious and ultra-hard materials. Especially, it has incomparable
advantages in cutting low content PCBN.
Design Features:
• Marble base table, not affected by temperature and humidity,
stable and not easy to deform.
• Adopts advanced fiber laser module, more stable, more precise,
more durable and
maintenance-free.
• The self-developed laser source, minimum after-sales service
cost.
• High efficiency, high precision cutting, thin cutting kerf, saves
the material.
• 3 times faster cutting speed than YAG, with smaller heat-affected
zone.
• Two axis of the worktable are driven by servo motor, closed-loop
control, repositioning accuracy :s:0.005mm.
• 24 hours working, processing any 2D graphics, software supports
automatic model and manual model, equipped with CCD monitor.
• Z axis step motor drive and A axis as rotary axis, can process
the material with relief angle.
Technical Parameters:
Power supply requirements | 380V50Hz, Five-core four-square power cord |
Working environment | Room temperature 20~40℃, humidity ≦60%, away from oil source |
Cooling Mode of Machine | Adopt dual temperature cooling system , laser cutting head cooled by room temperature water. Laser cooled
by 22℃cooling circulating water, and for manufacturing workpiece
cooled by purify oil-free compressed air. |
Laser Source | Fiber laser |
Duty Ratio | 1~100% |
Frequency | 1-2000 Hz |
Power percentage | 1%~100% |
Four Axis stroke | 300*300*50mm A-Axis 0±30° |
Maximun power output | 3000W |
Positioning accuracy | ≦± 0.005mm |
Repeat positioning accuracy | ≦± 0.005mm |
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and
service, we have our own R&D team and production workshop. We
can develop our customers' unique products according to their
needs.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide
one-on-one online video service according to the needs of
customers, and one-on-one service to solve customers' worries.
Q: How about the cutting thickness and width of Laser cutting
machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of
4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
