CE Certificate Ultra Hard Material Grinding Machine With Marble Cross Table

ZT-180 Type CNC Grinder is mainly used for grinding multiple cutters and parts such as artificial diamond, cubic boron nitride and hard alloy etc. The machine tool has sufficient rigidity and precision, which can realize constant pressure grinding and satisfy the grinding of high-precision and high-finish cutters to obtain the good grinding result.

Design Features:

1, Average 18 months natural ageing;
2, Adopt SCHNEEBERGER heavy duty and precision linear slide

3, 5-Axises NC and 2 linked machine.

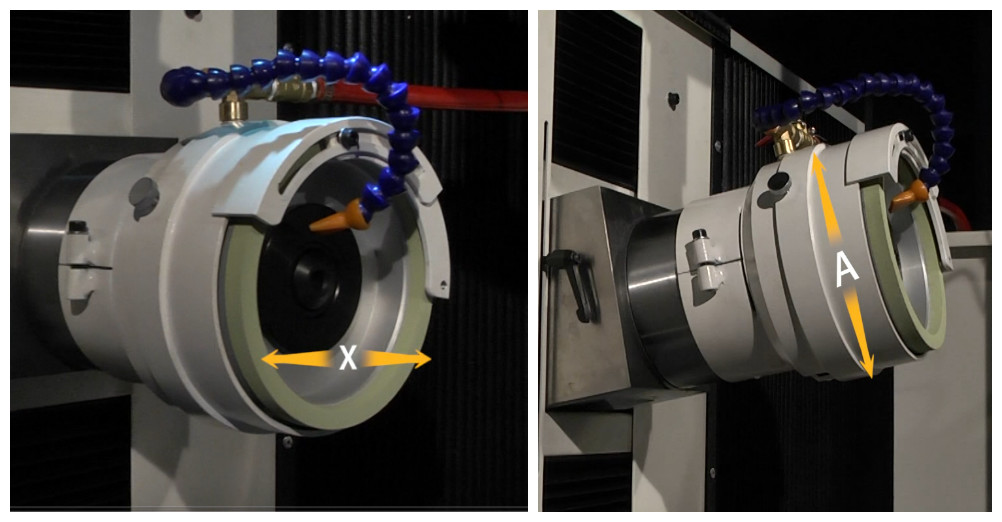

4, Swing mechanism utilizing ball-screw by a servo motor
5,Japan SMC pneumatic system
6, Linear grating and angle encoder of this model is FAGOR
7, Camera with LCD monitor ,real-time online monitoring
8, Optical system for adjustable from 7-45 magnification even 0.05 radius can be grinded and inspected.

Technical Parameters

CHN-TOP SCI & TECH CO., LTD is a high-tech enterprise founded by young technology graduates of Tsinghua University, long time focus on the ultra-hard tools (such as PCD,PCBN,MD,ND,CVD diamond tool) field,is a machine tool builder that specializes in designing and supplying precision machines (such as Grinding Machine for Ultra-Hard Tools, Vacuum Brazing Machine, Laser Cutting Machine, Indexable Insert Tip Periphery Grinding Machine, Polishing Machine for PCD&PCBN Tools etc.),as a sales agent for the abroad advanced PCD and PCBN, develop the advanced processing technology for the ultra-hard materials, provide the technical consultation and special processing services, as a global integrator to provide the most complete solution for ultra-hard tools, products sell all over the world.

Originally founded by graduates from Tshinghua university, and we was belong to Tshinghua universtity as a R&D . At 2003, CHN-TOP become a independent company which focus on diamond tools(PCD, PCBN,MD,ND,CVD) industries, produce high precision process equipments.(PCD PCBN tools grinders, vacuum brazing machines, laser cutting machines, chip breaker machines);We offer pre-machining services(PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing，etc.), and distribute world famous PCD and PCBN blanks;Also supply professional consultation and advanced technical services, we are your only one stop shop in the field of ultra-hard materials processing with good reputation in global market. Our business scope is :

• CNC and manual grinders for PCD/PCBN milling, reaming, turning and drilling tools ,etc.
• High precision laser cutting machine for PCD/PCBN/Ceramic and some other valuable materials
• Special laser engraving machines for chip breaker and positioned hole
• Automatic vacuum brazing machine and paste, widely used in PCD/PCBN/CVD/Cardbide, etc.
• Offer diamond cutting tools' pre-machining: laser cutting, carbide notching, brazing, chip breaker
• Ultra-hard material machinining: lampping, grinding and polishing, etc.
• Provide high quality PCD/PCBN blanks and distribute world famous brand materials.
