CHN-TOP Vacuum Brazing Machine For Brazing Ultra-hard Material
Tools
| Technology Parameters |
| Dimensions | 1600*950*900mm (L*W*H) |
| Power Supply | 380V-3Phases-5Wires 50Hz |
| Chamber | Quartz Glass Tube |
| Rated Power | 20KW |
| Chamber Size | φ180*500*4 (T)mm |
| Max Temperature | 950° |
| Max Vacuum Rate | 10-6 Torr (10-4 Pa) |
| Brazing Vacuum Rate | 10-5 Torr (10-3 Pa) |
| Heating Source | 18 pcs halogen tubes |
| Chilling | Water cooling |
| Vacuum Process | 1. Cleaning 2. Fixing Flux 3. Drying :200℃ 30mins 4. Brazing |
ZT-ZKHJ180 is excellent for brazing ultra-hard materials
(PCD/PCBN/MD/ND/CVD), tungsten carbide, ceramics, etc. It is fully
automatic and easy to operate at high efficiency.
Materials: Natural Diamond, Mono Crystal Diamond, PCD, PCBN, CVD
and Cermet.
Substrate Materials: Cermet, Tungsten Carbide, Steel, Stainless
Steel, Steel Alloy, Ceramics, etc.
Design Features:
• PLC control, SCR heating, touch panel, automatic running after
simple setting.
• No oxidation, clean surface and environment-friendly.
• Brazing quantity is more than 500 pcs (CNGA1204), reducing total
cost.
• The machine is fully automatic, once loaded, the cycle time is
approximately 70-120 minutes.
• Reduction of distortion, even a very small tool insert can be
brazed.
• Brazing strength is 2 times higher than induction welding.
• Advanced quartz stone for table-board, high temperature
resistance.
PRODUCING STEPS
1, Washing, put the work piece into the Ultrasonic cleaning machine
for 15-20 minutes;2, Fixing;
3, Drying, adjust the drying oven at 210 degree for 10-15 minutes;

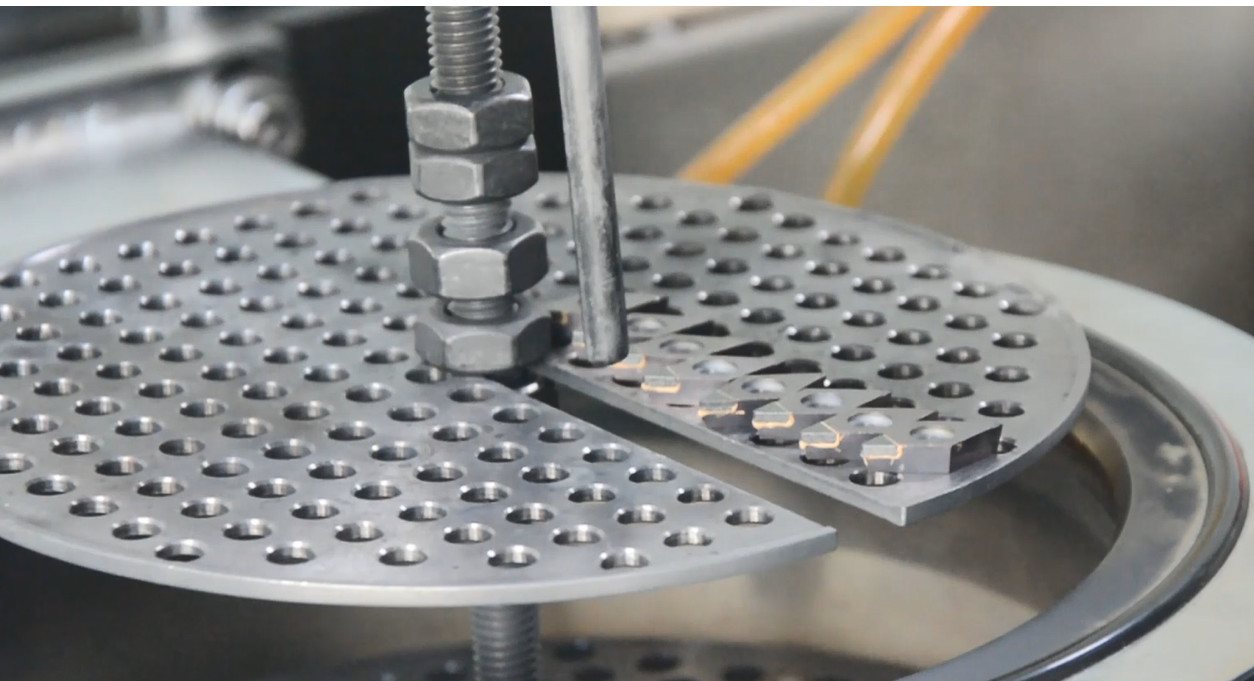

4, Brazing/Welding, put the work piece into the chamber, according
to preset program welding;
5, Finished brazing / welding and below are the ready goods.
Package:
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and
service, we have our own R&D team and production workshop. We
can develop our customers' unique products according to their
needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and
45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide
one-on-one online video service according to the needs of
customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement
with international big brands, customers do not need to worry about
genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank,
customers can choose goods according to different needs, we also
have self-developed domestic PCD with high quality, the price is
very competitive.
Q: How about the cutting thickness and width of Laser cutting
machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of
4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
