Economical Grinding Machine Fully Automaca PCD/PCBN Grinder Hot Selling

Technical Parameters

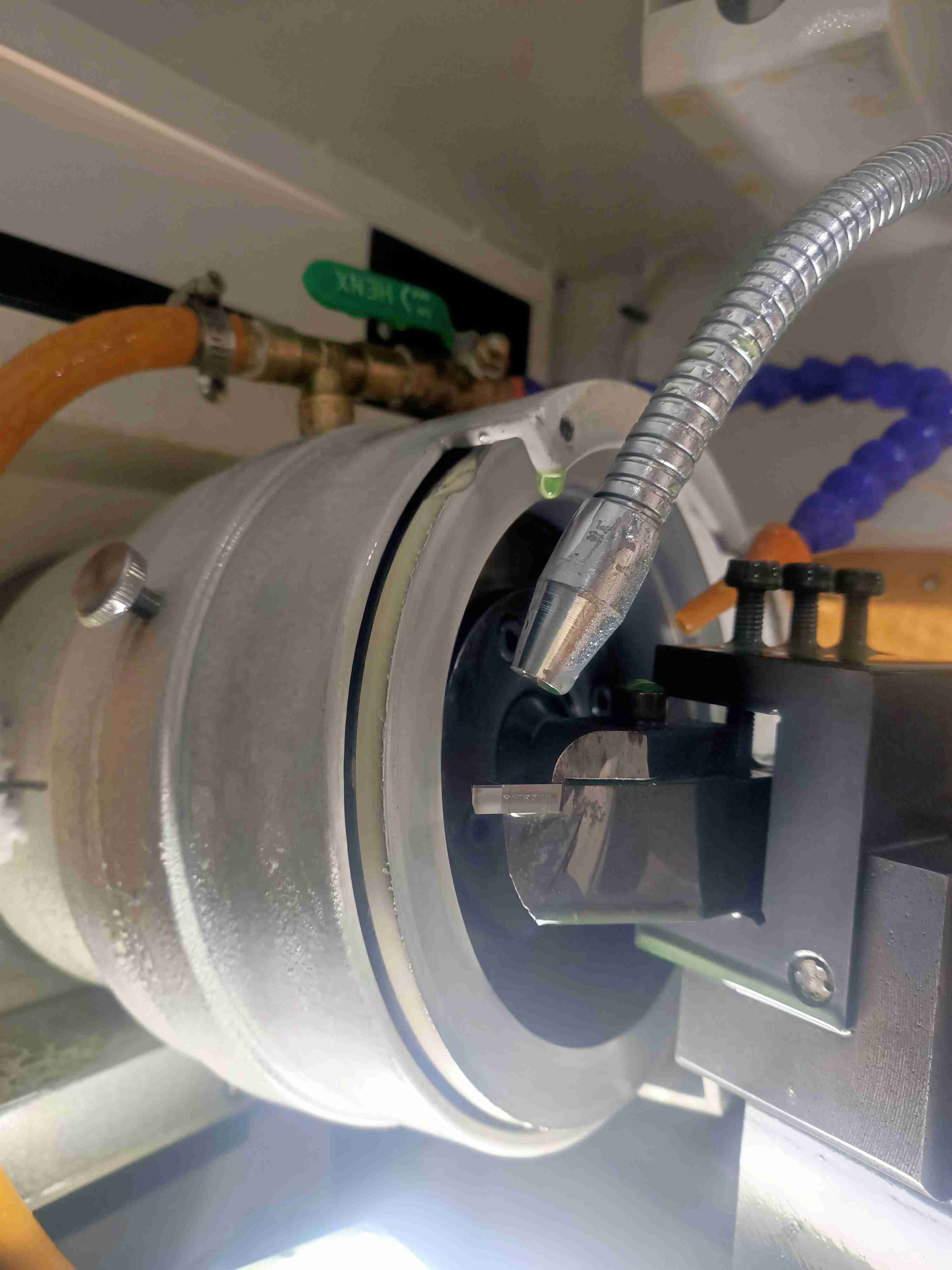

ZT-90CNC is an economical grinding machine designed based on the ZT-90 to meet the automation manufacturing and sophisticated demands of toolmakers working with both hard and ultra-hard materials, such as PCD, PCBN and hard alloy.

Design Features:

• Extremely rigid construction with heavy duty cast iron body, more than

18 months natural ageing, stable and durable.

• The spindle can realize lifting and angle adjustment, which embodies the

perfect combination of precision, rigidity and dexterity.

• 5 axis CNC, 2 axis linkage, the whole grinding process is fully automatic.

• Using the latest vision technology, realizes on-line detection, automatic

grinding, parameter memory, machining error alarm, etc., comprehensively improves the machining efficiency, accuracy, automation and stability.

• Spindle motor adopts brush less motor, stable and reliable.

• The whole pneumatic system is of JAPAN SMC brand, to get rapid feed

and outfeed and flexible grinding.

• Equipped with electronic handwheel, can easily adjust the position of

each machining axis and achieve manual grinding.

Business Scope:

Vacuum Brazing Machine

CNC/Manual Grinder for PCD/PCBN Tools

Laser Cutting/Engraving machine, Lapping machine

Distribution World Famous PCD/PCBN Blanks, Produce High Quality PCD Material

Machining Service for Laser Cutting, Polishing, Brazing, Chip Breaker of Ultra-Hard Material

Accessories for Cutting Tools Making(Oil Agglutinant, Dressing Stick, Vacuum Paste)

Originally founded by graduates from Tshinghua university, and we was belong to Tshinghua universtity as a R&D . At 2003, CHN-TOP become a independent company which focus on diamond tools(PCD, PCBN,MD,ND,CVD) industries, produce high precision process equipments.(PCD PCBN tools grinders, vacuum brazing machines, laser cutting machines, chip breaker machines);We offer pre-machining services(PCD/PCBN laser cutting, tools brazing, chip breaker engraving, lapping and polishing，etc.), and distribute world famous PCD and PCBN blanks;Also supply professional consultation and advanced technical services, we are your only one stop shop in the field of ultra-hard materials processing with good reputation in global market. Our business scope is :

• CNC and manual grinders for PCD/PCBN milling, reaming, turning and drilling tools ,etc.
• High precision laser cutting machine for PCD/PCBN/Ceramic and some other valuable materials
• Special laser engraving machines for chip breaker and positioned hole
• Automatic vacuum brazing machine and paste, widely used in PCD/PCBN/CVD/Cardbide, etc.
• Offer diamond cutting tools' pre-machining: laser cutting, carbide notching, brazing, chip breaker
• Ultra-hard material machinining: lampping, grinding and polishing, etc.
• Provide high quality PCD/PCBN blanks and distribute world famous brand materials.
