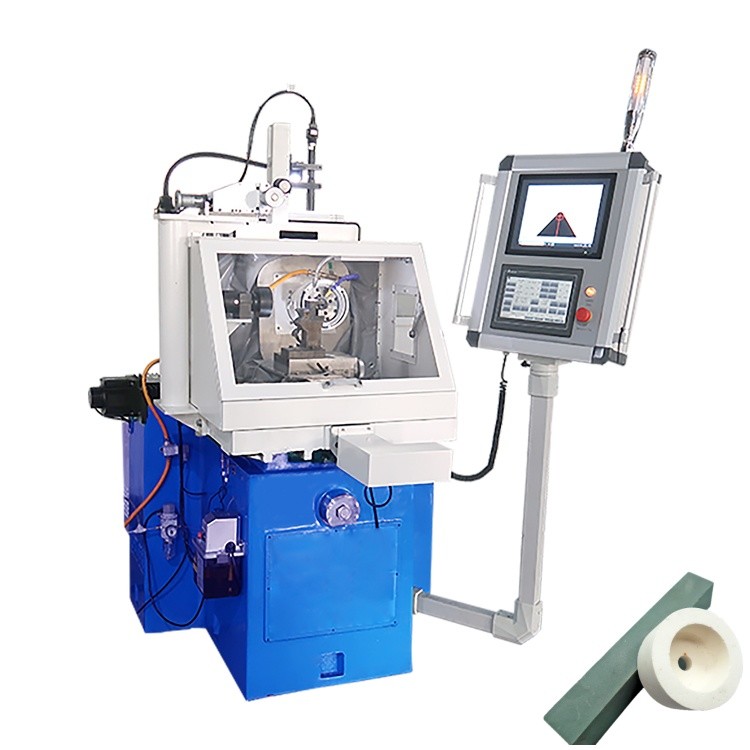

Product Description:
The grinding wheel size is 150*40*40mm(D*H*T), which is suitable
for grinding PCD/PCBN Tools. The tip radius of the machine can be
adjusted from 0 to 70mm, allowing for a wide range of grinding
applications. This makes it a versatile tool that can be used for
various grinding needs.
The PCD/PCBN Grinding Machine is a must-have for anyone who needs
to grind PCD/PCBN materials. It is a high-quality tool that is
designed to deliver exceptional results. It is easy to use,
efficient, and reliable, making it a great investment for anyone
who needs to grind PCD/PCBN materials.
Technical Parameters:
| Product Name: | PCD/PCBN Grinding Machine |
| Grinding Wheel Oscillation Distance: | 0-40mm (adjustable) |
| Grinding Wheel Traveling Range: | 170mm |
| Size of Cross Table: | 210*160mm With 4T Grooves |
| Optical Tube Distance: | 300mm |
| Grinding Wheel Height Adjustment: | 140mm |
| Grinding Wheel Size: | 150*40*40mm (D*H*T) |
| Image Magnification: | 45-250 Times (digital Zoom) |
| Readout of Linear Gratings: | 0.001mm |
| Spindle Power: | 2.2kw |
Applications:
The ZT-90CNC PCD Grinder is CE certified and has a minimum order
quantity of 1. It comes packaged in a sturdy plywood box and has a
delivery time of 45-60 days. Payment terms include TT, LC, and
Western Union.
One of the key features of the ZT-90CNC PCD Grinder is its grinding
wheel height adjustment, which can be adjusted up to 140mm. This
makes it suitable for grinding a variety of tool sizes and shapes.
Additionally, the machine has a pixel size of 3.75um*3.75um and an
optical tube distance of 300mm, which ensures high-precision
grinding results.
The grinding pressure of the ZT-90CNC PCD Grinder is adjustable up
to 450N, which means that it can be used to grind a variety of
materials with varying degrees of hardness. The cross table
swiveling angle is 270°, which makes it easy to position the tool
accurately and efficiently.
The ZT-90CNC PCD Grinder is suitable for use in a variety of
applications, including precision tool grinding, grinding PCD and
PCBN cutting tools, and grinding other hard materials. It is ideal
for use in industries such as aerospace, automotive, and
manufacturing.
In summary, the CTSTC ZT-90CNC PCD Grinder is a high-precision
grinding machine that is suitable for a variety of grinding
applications. Its adjustable grinding wheel height, high-precision
optics, and adjustable grinding pressure make it a versatile and
efficient tool for grinding PCD and PCBN tools. With a minimum
order quantity of 1, it is a great investment for any manufacturing
or precision engineering company.
Support and Services:
The PCD grinding machine is designed for grinding and sharpening
polycrystalline diamond (PCD) cutting tools. Our technical support
and services for this product include:
- Installation and setup assistance
- Training on proper use and maintenance of the machine
- Technical troubleshooting and repair services
- Supply of replacement parts and consumables
- Customization services to meet specific requirements
We are committed to providing comprehensive support to ensure the
optimal performance and longevity of your PCD grinding machine.
Packing and Shipping:
Product Packaging:
- 1 PCD Grinding Machine
- 1 Grinding Disc
- 1 Dust Cover
- 1 Instruction Manual
Shipping:
- Shipping Method: UPS Ground
- Shipping Cost: $20.00
- Estimated Delivery Time: 3-5 business days
FAQ:
Q: What is the brand name of the grinding machine?
A: The brand name of the grinding machine is CTSTC.
Q: What is the model number of the grinding machine?
A: The model number of the grinding machine is ZT-90CNC.
Q: Where is the grinding machine made?
A: The grinding machine is made in China.
Q: Is the grinding machine certified?
A: Yes, the grinding machine is CE certified.
Q: What is the minimum order quantity for the grinding machine?
A: The minimum order quantity for the grinding machine is 1.
Q: What are the packaging details for the grinding machine?
A: The grinding machine is packaged in a plywood box.
Q: What is the delivery time for the grinding machine?
A: The delivery time for the grinding machine is 45-60 days.
Q: What are the payment terms for the grinding machine?
A: The payment terms for the grinding machine are TT (Telegraphic
Transfer), LC (Letter of Credit), and Western Union.
