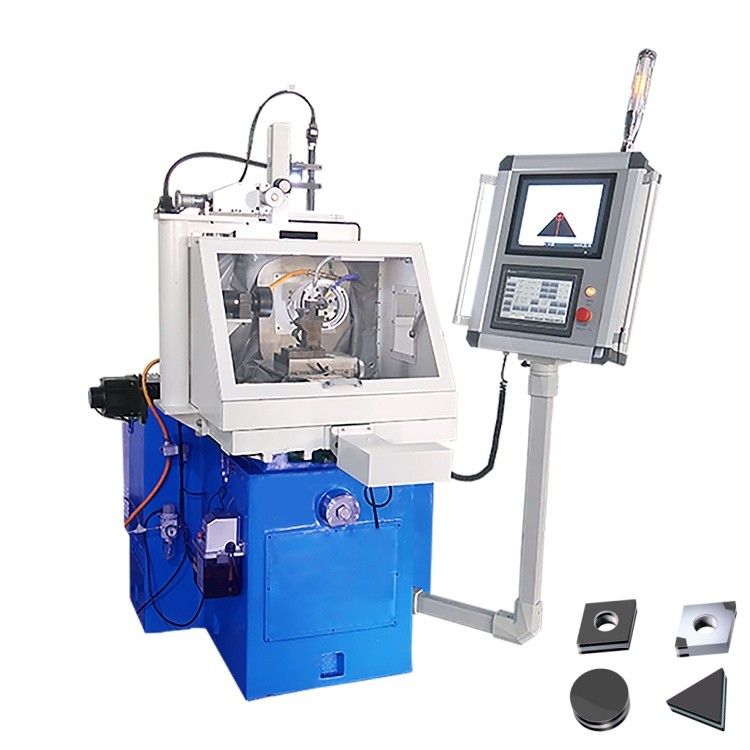

Product Description:
The PCD Grinding Machine is designed with a Tip Radius of 0-70mm,
which makes it ideal for sharpening tools with different shapes and
sizes. It also has an Image Magnification of 45-250 Times (digital
Zoom), which provides users with a clear view of the grinding
process. The machine's Grinding Wheel Height Adjustment of 140mm
makes it easy to adjust the height of the grinding wheel to achieve
precision grinding results.
The PCD Grinding Machine is a versatile and reliable tool that is
perfect for grinding and sharpening PCD/PCBN Tools and other hard
materials. Whether you are a professional or a DIY enthusiast, this
machine is easy to use and delivers superior results. With its
advanced features, it is the perfect tool for anyone looking to
achieve precision grinding results.
Technical Parameters:
| Product Name | PCD/PCBN Grinding Machine |
| Dimension | 1200*1168*1530mm(L*H*W) |
| Readout of Linear Gratings | 0.001mm |
| Cross Table Swiveling Angle | 270° |
| Grinding Wheel Size | 150*40*40mm(D*H*T) |
| Grinding Wheel Oscillation Frequency | 0-45/min(adjustable) |
| Tip Radius | 0-70mm |
| Grinding Wheel Inclination | -13°~+24° |
| Grinding Wheel Traveling Range | 170mm |
| Spindle Speed | 0-42000RPM(adjustable) |
Hard materials grinder, PCD/PCBN materials grinder, PCD/PCBN Tools
grinder
Applications:
Whether you need to sharpen PCD/PCBN tools or grind other hard
materials, the ZT-90CNC is up to the task. Its adjustable grinding
wheel inclination allows you to achieve precision results every
time, while the grinding wheel oscillation distance can be easily
adjusted to suit your specific needs.
The ZT-90CNC also features an impressive optical tube distance of
300mm, which allows for detailed and accurate grinding. And with a
digital zoom image magnification of 45-250 times, you can be sure
that even the smallest details will not be overlooked.
The image system resolution of 1280dpi*960dpi ensures that you have
a clear view of your work at all times, allowing for precise and
accurate grinding. And with a minimum order quantity of just one
and packaging details in a sturdy plywood box, the ZT-90CNC is easy
to order and transport.
Whether you are a professional toolmaker or simply need a reliable
grinder for your workshop, the CTSTC ZT-90CNC is the perfect
choice. With fast delivery times of 45-60 days and flexible payment
terms including TT, LC, and Western Union, you can have your
grinder up and running in no time.
Support and Services:
The PCD grinding machine is a highly efficient and reliable tool
used for grinding and polishing hard materials such as diamond,
ceramic, and metal. Our technical support team is available to
assist you with any questions or concerns you may have regarding
the operation and maintenance of your PCD grinding machine.
We offer a comprehensive range of services to ensure that your PCD
grinding machine is operating at its best. Our services include:
- Installation and setup
- Training and education
- Preventative maintenance
- Repairs and replacements
- Upgrades and retrofits
Our team of experienced technicians is committed to providing you
with the highest level of service and support. Whether you need
assistance with troubleshooting, repair, or maintenance, we are
here to help.
Packing and Shipping:
Product Packaging:
- One PCD Grinding Machine
- One set of grinding wheels
- One instruction manual
Shipping:
- Shipping will be done through a standard courier service
- Shipping time may vary depending on the delivery location
- Tracking information will be provided once the product has been
shipped
FAQ:
1,What is the brand name of this grinding machine?
The brand name of this grinding machine is CTSTC.,
2,What is the model number of this grinding machine?
The model number of this grinding machine is ZT-90CNC.,
3,Where is this grinding machine made?
This grinding machine is made in China.,
4,Is this grinding machine certified?
Yes, this grinding machine is certified with CE.,
5,What is the minimum order quantity for this grinding machine?
The minimum order quantity for this grinding machine is 1.
Additional Information:
Packaging Details: This grinding machine is packed in a plywood box.
Delivery Time: The delivery time for this grinding machine is 45-60 days.
Payment Terms: The payment terms for this grinding machine are TT/LC/Western
Union.
